High-Temperature Carbon DLS Epoxy Resins: A Comprehensive Comparison of EPX 82, 86FR & 150

francescoodierna@gmail.com — Fri, 05 Jun 2026 09:08:29 +0000

When an industrial component must withstand high temperatures, resist fuels and chemicals, and maintain dimensional stability under continuous load, standard polymers are not enough.

This article compares all three Carbon DLS™ epoxy resins across mechanical properties, temperature resistance, certifications, and application fit to help engineers and R&D teams select the right material for their project.

What Are Carbon DLS™ Epoxy Resins?

Carbon DLS™ epoxy resins — EPX 82, EPX 86FR, and EPX 150 — are engineering-grade materials designed specifically for demanding end-use applications in automotive, aerospace, medical, industrial automation, and high-performance manufacturing.

Carbon DLS™ (Digital Light Synthesis ™) is a photopolymerization-based additive manufacturing process that uses UV light projected through an oxygen-permeable window to continuously cure liquid resin. Unlike layer-by-layer SLA or DLP systems, DLS™ produces parts with isotropic mechanical properties, meaning performance does not vary with print orientation.

This is the fundamental advantage of DLS™ epoxy resins over traditional AM materials: the part behaves the same regardless of how it was printed. For structural and load-bearing components, this is not a marginal improvement. It changes how the part can be designed and qualified.

At Prototek, EPX 82, EPX 86FR, and EPX 150 are all available in production, from single prototypes to series runs.

Carbon DLS™ Epoxy Resins: Technical Data Comparison

Property	EPX 82	EPX 86FR	EPX 150
Tensile modulus	2800 MPa	3300 MPa	2700–2900 MPa
Ultimate tensile strength	80 MPa	90 MPa	76–79 MPa
HDT (dry, 0.455 MPa)	130°C	135°C	155°C
Glass transition (Tg)	~150°C	~150°C	175°C
Fire rating	UL 94 HB	UL 94 V-0 @ 2.0 mm / FAR 25.853(a) @ 1.0 mm	UL 94 HB
Biocompatibility	ISO 10993-5, 10993-10	—	ISO 10993-5, 10993-10, 10993-23 + hemolysis
Autoclave sterilization	—	—	430 cycles @ 134°C
USCAR2 automotive cycling	Yes	Yes (Class T3)	—
VIAQ (VOC, fogging)	Yes (3 ppm VOC)	—	Yes (<1 ppm VOC)

EPX 82: High Mechanical Performance for Automotive and Industrial Parts

EPX 82 is a rigid epoxy resin for Carbon DLS™ that combines functional toughness, stiffness, and temperature resistance, making it highly useful for a variety of automotive, industrial, and consumer applications.

Key Mechanical Properties of EPX 82

Tensile modulus: 2800 MPa.
Ultimate tensile strength: 80 MPa.
HDT at 0.455 MPa (dry): 130°C.
Flexural modulus: 3000 MPa.
Elongation at break: 5%.
Shore D hardness: 89 (instant).

Chemical Resistance and Environmental Endurance

EPX 82 shows minimal mass gain (<5%) after exposure to engine oil, brake fluid (Castrol DOT-4), transmission fluid, diesel, engine coolant, and sulfuric acid (30%).
In USCAR2 automotive cycling tests (temperature/humidity, 240h), the tensile modulus retention is 95% and yield strength retention is 100%.
It passes automotive interior air quality standards, displaying a VOC of just 3 ppm against a target of <100 ppm.
It exhibits zero semi-volatile organics (FOG).
It demonstrates a fogging value of 0.04 mg against a target of <2 mg.

EPX 86FR: Flame-Retardant Carbon DLS™ Resin for Aerospace

EPX 86FR is a fire-retardant variant that offers an unmatched combination of functional toughness, high strength, and long-term stability.

UL 94 V-0 and FAR 25.853(a) Fire Certifications

EPX 86FR exhibits self-extinguishing features.
In FAR 25.853(a) vertical burn testing at 1.0 mm thickness, the average flame time was 4.66 seconds.
During FAR 25.853(a) testing at 2.0 mm and 3.0 mm thicknesses, samples did not ignite at all.
The material achieves a UL 94 V-0 flammability rating at 2.0 mm and a V-1 rating at 1.5 mm.

High-Temperature Stability and Mechanical Data

Tensile modulus: 3300 MPa.
Ultimate tensile strength: 90 MPa.
HDT at 0.455 MPa (dry): 135°C.
Elongation at break: 5–10% (ISO 527 / ASTM D638).
It successfully withstands USCAR2 Class T3 (–40°C to +125°C, 40 cycles) thermal cycling with 100% retention of tensile modulus and yield strength.
Following heat aging at 125°C for 1000 hours, both the tensile modulus and ultimate tensile strength remain completely stable.
It shows excellent chemical resistance to industrial fluids, fuels, and solvents, recording <5% mass gain across all tested agents.

EPX 150: Extreme Temperature Resistance and Biocompatibility

EPX 150 exhibits excellent chemical resistance, mechanical performance, is autoclavable, and is highly suitable for extended use at high temperatures.

Thermal Endurance and Autoclave Sterilization

HDT at 0.455 MPa (dry): 155°C.
Glass transition temperature (Tg): 175°C.
It demonstrates exceptional stability after 430 autoclave steam sterilization cycles at 134°C for 4 minutes.
After 3000 hours of heat aging at 125°C, the ultimate tensile strength and modulus remain unchanged.
After the same 3000-hour heat aging, the notched Izod impact strength retains >50% of its baseline.

Medical and Industrial Applications for EPX 150

It features comprehensive biocompatibility, passing ISO 10993-5 (cytotoxicity), ISO 10993-10 (sensitization), and ISO 10993-23 (irritation).
It also passes ASTM F756 / ISO 10993-4 for hemolysis and ISO 10993-11 for acute systemic toxicity.
Cytotoxicity requirements are met even after the material undergoes 430 autoclave sterilization cycles.
Tensile modulus: 2700–2900 MPa.
Ultimate tensile strength: 76–79 MPa.
It retains >80% of its tensile modulus, UTS, and elongation after 1000 hours of submersion in water at 85°C.
It shows an equivalent retention profile after 1000 hours of submersion in coolant/antifreeze mixtures at 85°C.
For RF and radome applications, it features a low, isotropic dielectric constant of 2.810.

How to Choose the Right Carbon DLS™ Epoxy Resin?

The three epoxy resins share the same DLS™ production process but answer different engineering requirements. Use this framework:

Choose EPX 82 if: you need strong structural rigidity, broad chemical resistance, and automotive qualification (VIAQ) for continuous operations up to 130°C.
Choose EPX 86FR if: your application requires fire certification (UL 94 V-0 or FAR 25.853) alongside thermal cycling performance up to 125°C. It is the stiffest of the three and the ideal option for aerospace fire-rated components.
Choose EPX 150 if: your application demands extreme temperature resistance (HDT 155°C), long-term fluid immersion stability, autoclave sterilizability, or comprehensive biocompatibility certifications for medical devices.

Additive Manufacturing vs. Injection Molding for Epoxy Components

For components in these material families, additive manufacturing is economically and technically competitive when:

Volume is below ~10,000 units: Tooling costs (typically very high per variant) do not need to be amortized.
Geometry includes complex features: DLS™ can easily produce undercuts, internal channels, and complex functional surfaces that are impossible or highly expensive to mold.
Design is subject to iteration: Each mold change in injection molding costs time and money; in DLS™, digital file adjustments cost nothing.
Lead time is critical: Moving from a validated CAD file to a finished part takes 1–3 weeks with DLS™, versus 8–16 weeks for tooled production.

Start Your Production with Prototek's Carbon DLS™ Service

Selecting the right resin is step one. Getting a production-ready part is a different challenge. At Prototek, we support your project from the first technical consultation:

Design for Additive Manufacturing (DfAM) analysis: We evaluate your CAD file and identify geometry optimizations before printing.
Material selection guidance: Matching the exact resin to your operating conditions, necessary certifications, and budget constraints.
Production planning: Scaling smoothly from functional prototype validation to series production.
Post-processing and QC: Managing surface finishing, dimensional verification, and batch certification.
ISO-certified processes: Guaranteeing quality management and full intellectual property protection across your entire manufacturing cycle.

Request a technical consultation

If you are evaluating Carbon DLS™ epoxy resins for a specific application—or comparing them to alternative materials or processes—our technical team is available for a direct consultation.

→ Send us your CAD file and project brief. We will provide a feasibility analysis, material recommendation and production proposal within 48–72 hours.

Send your Inquiry to Our Experts

[contact-form-7]

Prototek — AM Digital Factory. ISO 9001 | ISO 27001 certified. Carbon DLS™ authorised production partner.

L'articolo High-Temperature Carbon DLS Epoxy Resins: A Comprehensive Comparison of EPX 82, 86FR & 150 proviene da Prototek.

HP Multi Jet Fusion for Industrial 3D Printing: The Complete Technical Guide

francescoodierna@gmail.com — Wed, 03 Jun 2026 12:33:20 +0000

HP Multi Jet Fusion (MJF) has rapidly become one of the most adopted additive manufacturing technologies for industrial applications.

If you are an engineer, R&D manager, or product developer evaluating whether MJF is the right fit for your next project, this guide answers every critical question: from how it works and what materials it supports, to costs, design rules, and how it compares to SLS and FDM.

What is HP Multi Jet Fusion and How Does It Work?

HP Multi Jet Fusion is a powder-bed fusion process developed by HP Inc. Unlike Selective Laser Sintering (SLS), which uses a laser to fuse polymer powder point by point, MJF uses two chemical agents — a fusing agent and a detailing agent — that are inkjet-printed onto a powder bed. A broad infrared energy source then activates the fusing agent, selectively melting the powder layer by layer.

Key steps in the MJF process:

A thin layer of polymer powder (typically PA12 or TPU) is spread across the build platform.
Fusing agent is deposited where the part should solidify; detailing agent is deposited at boundaries to sharpen edges and control geometry.
An infrared lamp passes over the layer, fusing the treated powder.
The process repeats layer by layer until the build is complete.
The part cake is cooled, de-powdered, and finished.

The result: isotropic mechanical properties, fine surface detail, and the ability to run full-bed nested builds, making MJF highly competitive for both prototyping and scalable production runs.

What Are the Main Differences Between MJF, SLS, and FDM?

This is one of the most searched questions among industrial buyers. Here is a direct, structured comparison.

Feature	MJF	SLS	FDM
Energy source	Infrared + chemical agents	CO₂ laser	Heated extrusion nozzle
Main materials	PA 12, TPU, PA 11	PA 12, PA 11, PEEK, glass-filled	PLA, ABS, PETG, Nylon, CF composites
Part isotropy	High (near-isotropic)	Moderate (slightly anisotropic Z)	Low (anisotropic, weak Z-axis)
Surface finish	Medium (grainy, gray)	Medium (slightly rougher)	Visible layer lines
Dimensional accuracy	±0.3 mm up to 100 mm or ±0.3%	±0.3 mm or 0.3%	±0.5 mm or higher
Build speed	Fast (full bed, parallel)	Moderate	Slow (sequential)
Cost per part (medium batch)	Low-Medium	Medium	Low (desktop), Medium (industrial)
Scalability to production	High	Moderate	Low-Medium
Support structures needed	No (self-supporting)	No (self-supporting)	Yes

Quick answer: MJF is faster, more isotropic, and more scalable than SLS for industrial polymer parts. FDM is accessible and cheap but not suited for functional, end-use industrial components in most demanding applications.

What Materials Can MJF Use?

MJF is currently optimized for a specific but growing range of polymer powders. The most industrially relevant are:

PA 12 (Polyamide 12): The workhorse of MJF. Excellent mechanical properties, chemical resistance, dimensional stability. Ideal for functional prototypes and end-use parts. At Prototek, we run HP PA 12 as our primary MJF material, with full ISO 9001 quality certification.
TPU (Thermoplastic Polyurethane): Flexible, impact-resistant, rubber-like. Used for seals, gaskets, wearables, grips, footwear components, and vibration dampeners.
PA 12 Glass Beads (PA 12 GB): Higher stiffness and thermal resistance than standard PA 12; suited for dimensional reference parts and jigs.

Materials NOT compatible with MJF: High-performance polymers such as PEEK, ULTEM, or metal powders are not currently processable by MJF — for those applications, other technologies such as SLS (for PEEK) or metal AM are required.

Mechanical Properties Comparison

Material	Tensile Strength	Elongation at Break	Flexibility Indicators (Modulus/Hardness)
HP 3D High Reusability PA 12	XY Axis: 48 MPa / 6960 psi Z Axis: 48 MPa / 6960 psi	XY Axis: 20% Z Axis: 15%	Tensile Modulus XY: 1700 MPa / 245 ksi Tensile Modulus Z: 1800 MPa / 260 ksi
ESTANE 3D TPU M88A	X Axis: 15 (10.5) MPa Z Axis: 8 (6.5) MPa	X Axis: 440 (185) % Z Axis: 125 (55) %	Hardness: 88 ± 3 Shore A (X and Z axes)
HP 3D High Reusability PA 12 Glass Beads	XY Axis: 30 MPa / 4350 psi Z Axis: 30 MPa / 4350 psi	XY Axis: 6.5% Z Axis: 6.5%	Described as a stiff material. Tensile Modulus XY: 2800 MPa / 406 ksi Tensile Modulus Z: 2900 MPa / 421 ksi

How Does MJF Affect Part Isotropy Compared to SLS?

Isotropy is the ability of a material to exhibit the same mechanical properties in all directions — X, Y, and Z. For industrial end-use parts, this is critical.

MJF achieves near-isotropic parts because the fusing agent heats and bonds the entire cross-section of each layer uniformly, without the directional scanning pattern of a laser. In SLS, the laser traces paths that can introduce directional stress gradients, especially in the Z-axis.

Practical implication: With MJF, you can orient parts in the build chamber based purely on nesting efficiency, without sacrificing mechanical performance in any specific direction. This is a significant advantage in production scenarios.

What Industries Use MJF Technology?

HP Multi Jet Fusion technology has found adoption across a wide range of industrial sectors, including those Prototek serves every day:

Automotive: Functional brackets, air ducts, cable routing clips, interior prototypes, jigs and fixtures
Aerospace: Lightweight structural components, internal brackets, prototype assemblies
Nautical: Marine-grade fittings, housings, custom mechanical parts
Industrial machinery and automation: End-of-arm tooling, grippers, fixtures, housings, functional prototypes
Medical devices and wearables: Custom orthoses, ergonomic handles, anatomically shaped components
Packaging: Custom tooling, forming dies, product mockups.

What Are the Limitations of MJF for Industrial Use?

No technology is ideal for every scenario. MJF has known constraints to consider:

Limited material palette: Compared to SLS or FDM, fewer certified polymer options are available
Surface finish: Parts come out with a characteristic gray, slightly grainy surface (post-processing — dyeing, bead blasting, painting — can improve aesthetics)
Color options: Native output is gray/black; full-color printing requires post-processing or HP’s Multi Jet Fusion Full Color systems (which use different materials and are less mechanically oriented)
Part size: Maximum build volume varies by machine model; very large single-piece parts may require splitting
Thermal distortion on very large flat parts: Warping can occur on large, thin, flat geometries. Design guidance and correct orientation mitigate this.

Is HP Multi Jet Fusion More Accurate Than SLS?

Both technologies achieve comparable dimensional accuracy in the ±0.3 mm or ±0.3% range for most industrial applications. MJF can have a slight edge in feature sharpness at boundaries, because the detailing agent actively suppresses sintering at edges.

In practice, accuracy differences are marginal between well-calibrated MJF and SLS systems.

What Is the Surface Finish of MJF Parts?

Straight out of the printer, HP Multi Jet Fusion (MJF) parts feature a distinctive raw gray color and a matte, slightly textured surface comparable to medium-grit sandpaper.

Available Post-Processing Options

To elevate both the functional and aesthetic quality of 3D printed components, several advanced finishing processes are available:

Micro bead blasting: Goes beyond standard treatment by reducing surface porosity and improving smoothness through a slightly abrasive process.
Impregnation coloring: Achieves a uniform black color by penetrating the first layers of the part, ensuring a stable and long-lasting coloration.
Shiny Black treatment: Combines black impregnation with micro-bead blasting to reduce surface roughness and opacity. The result is a glossy, scratch-resistant, embossed-like finish.
Graphite treatment: Creates a smooth, anti-scratch, metallic grey surface, representing one of the highest-quality finishes available.
Painting and coatings: Optional professional painting, including thorough surface preparation, to achieve a perfect aesthetic appearance suitable for end-use products.

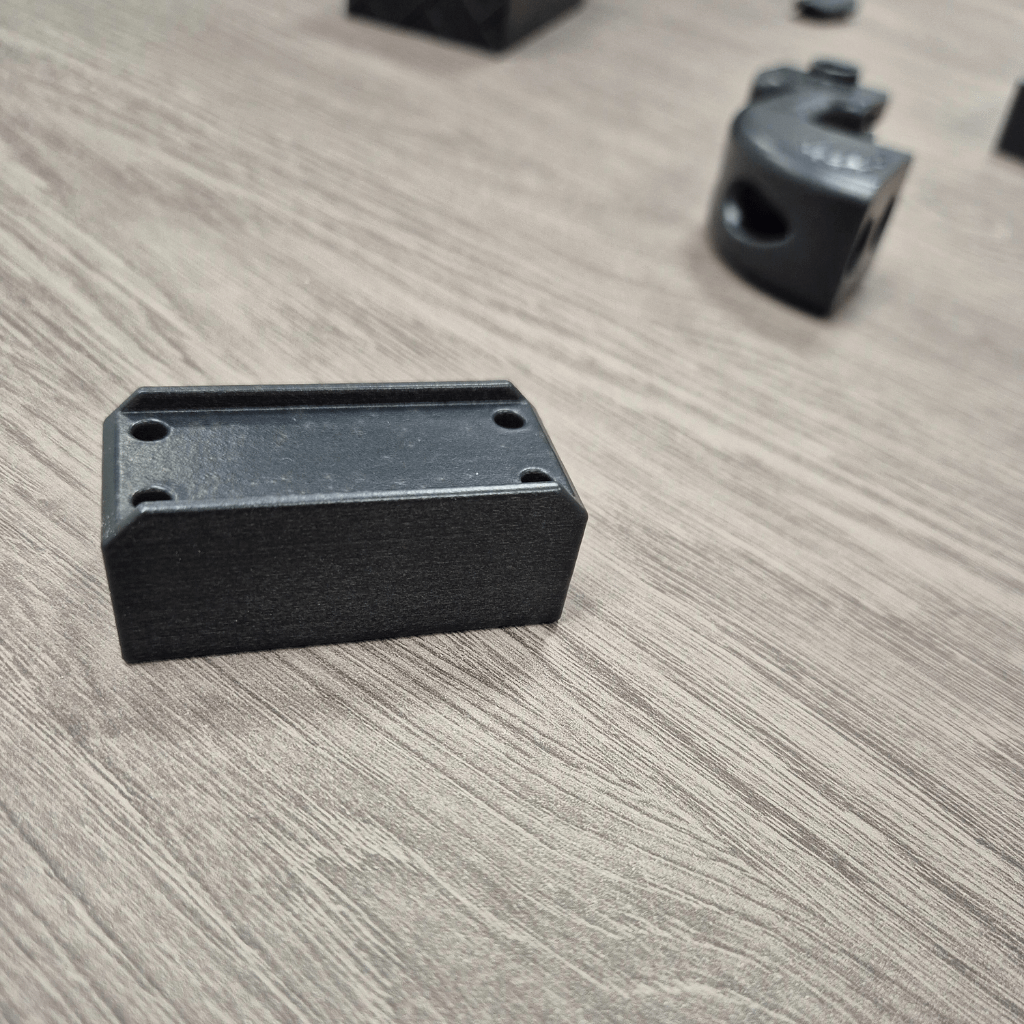

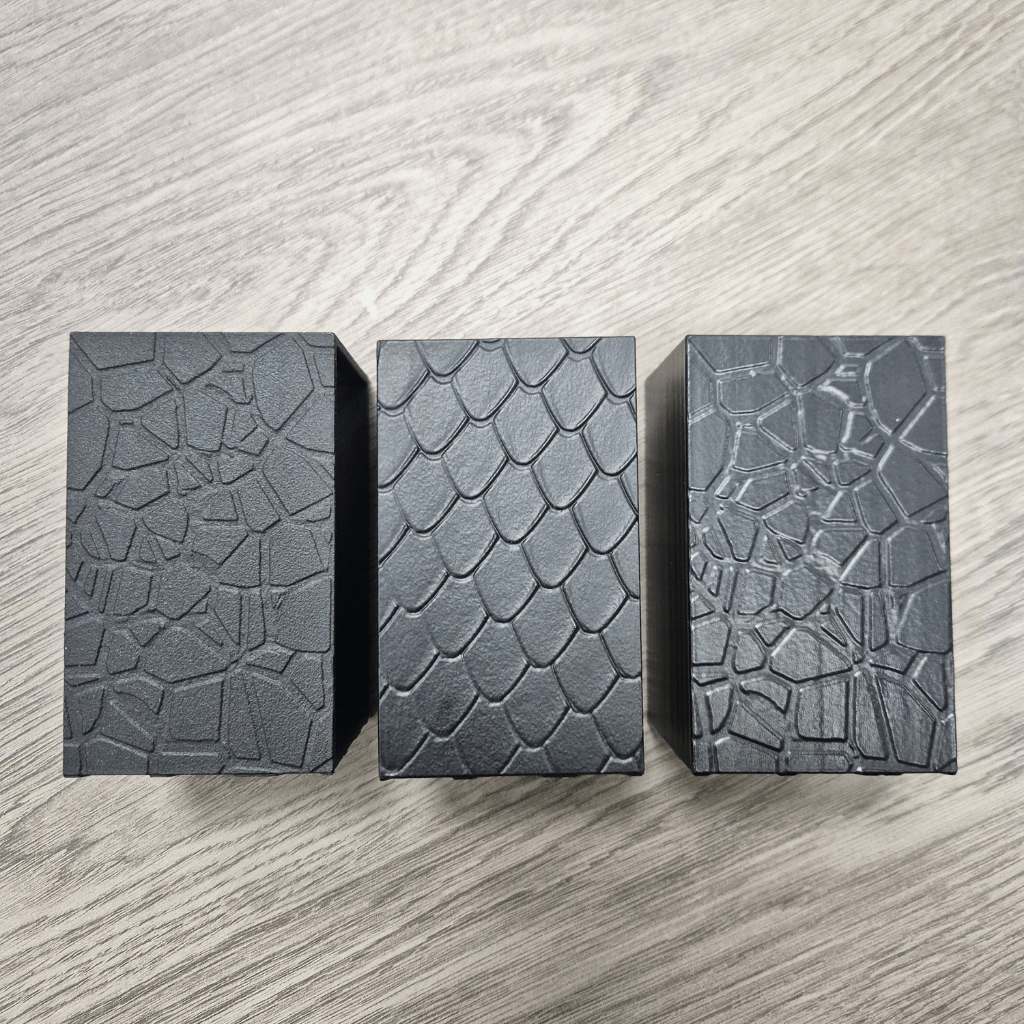

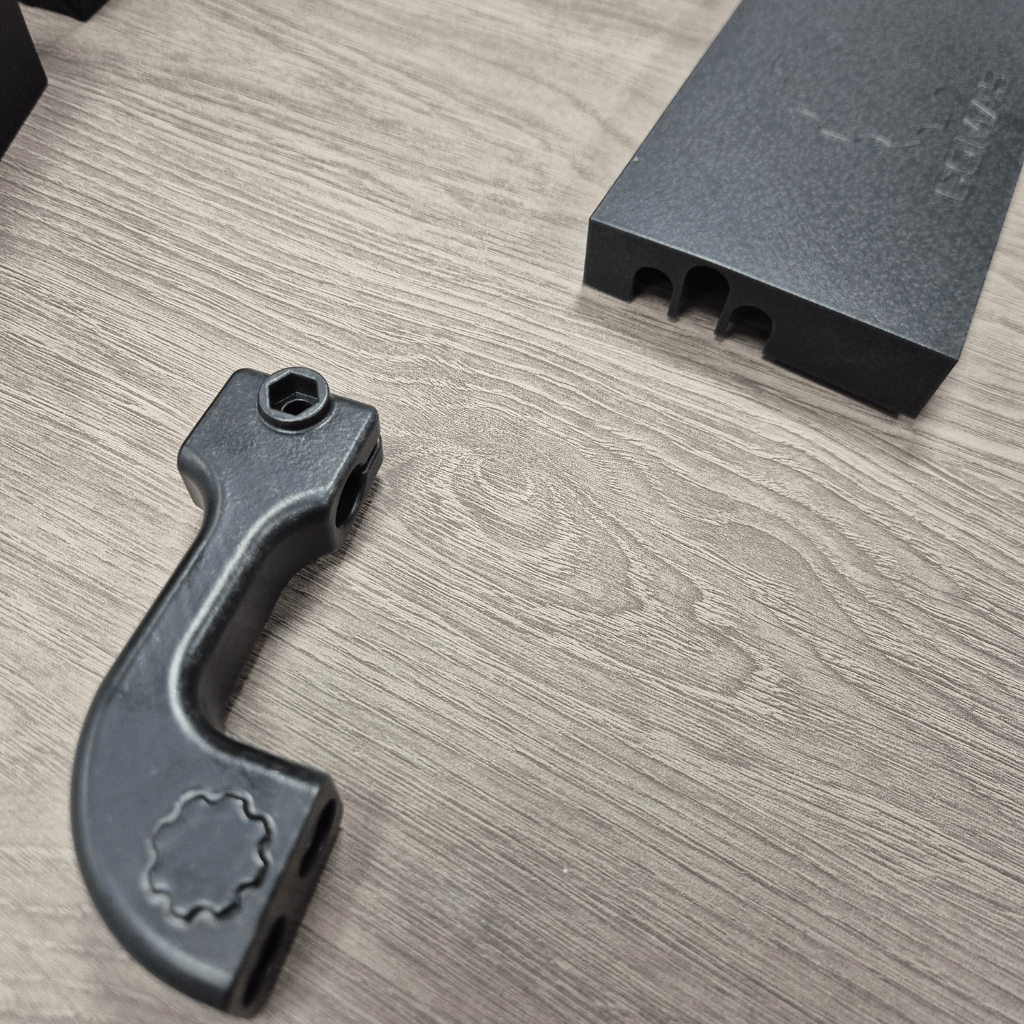

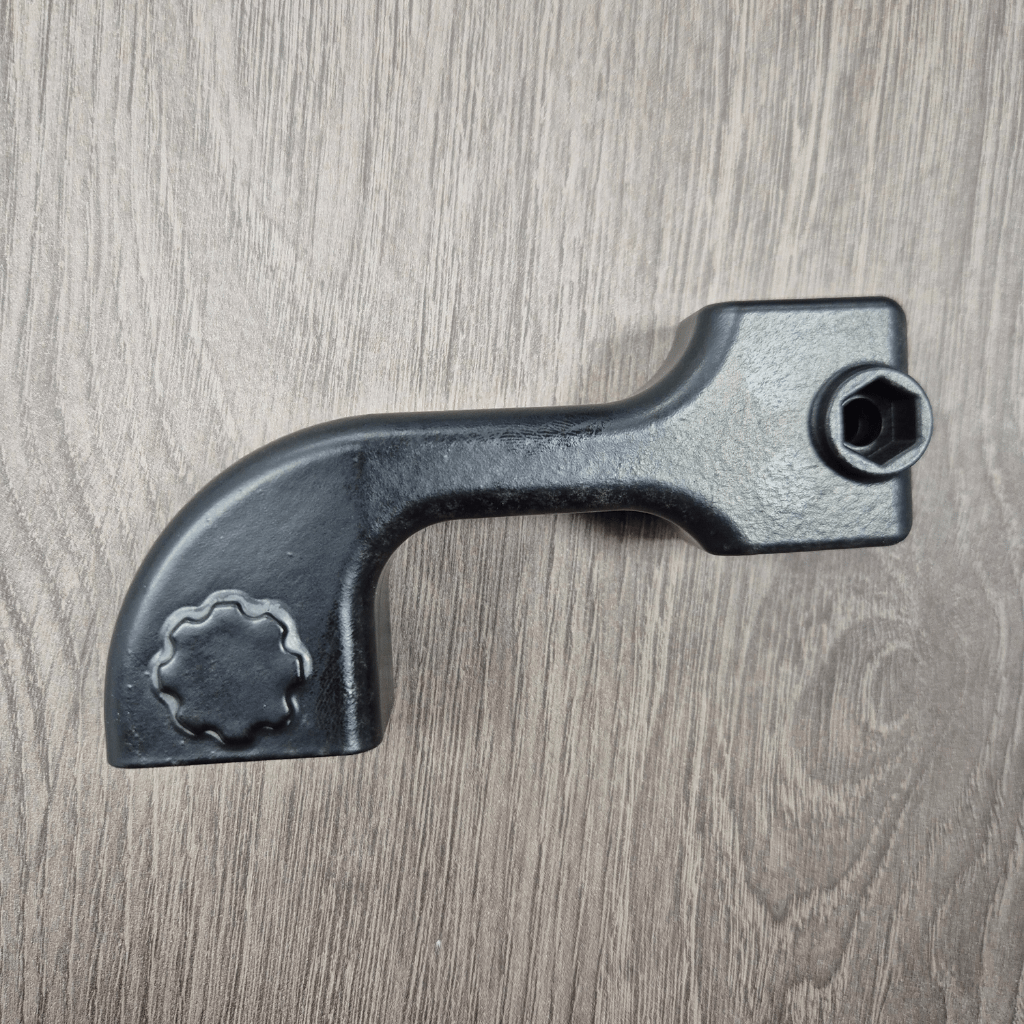

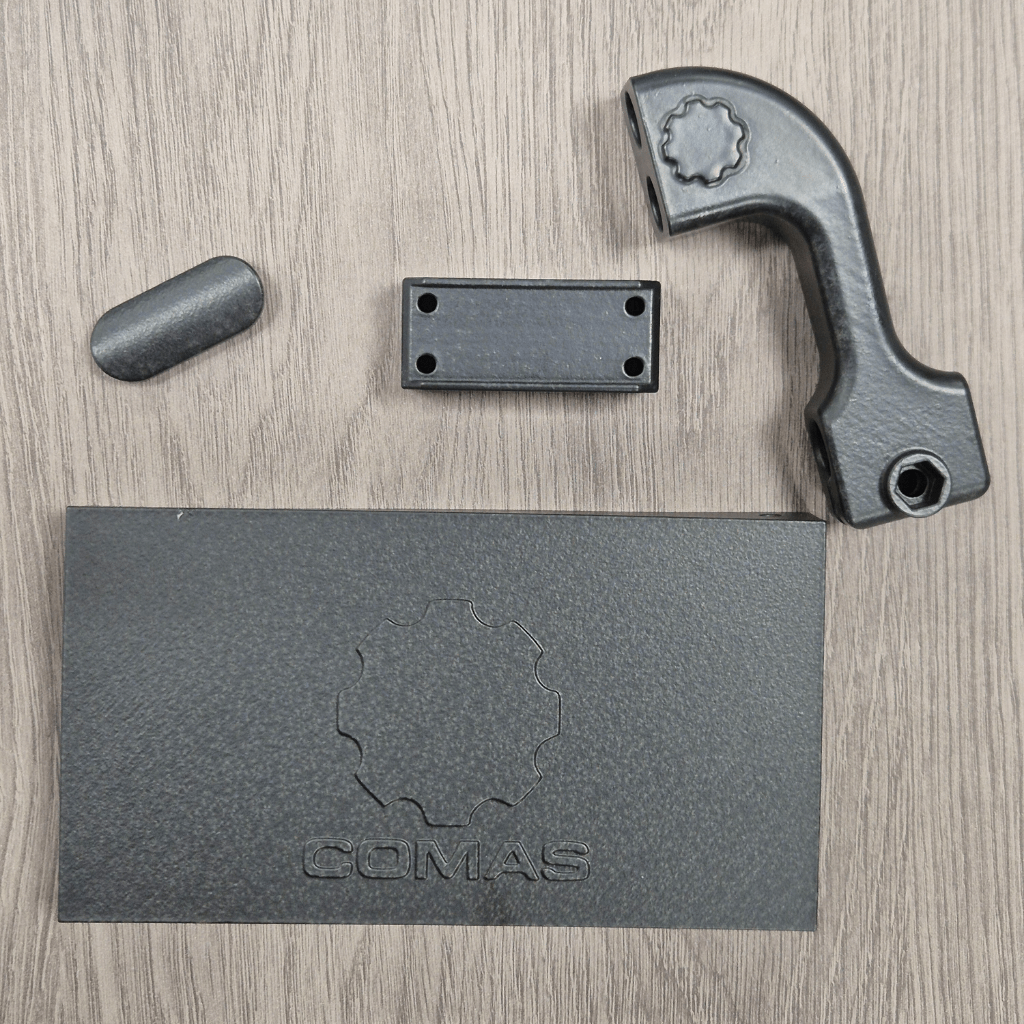

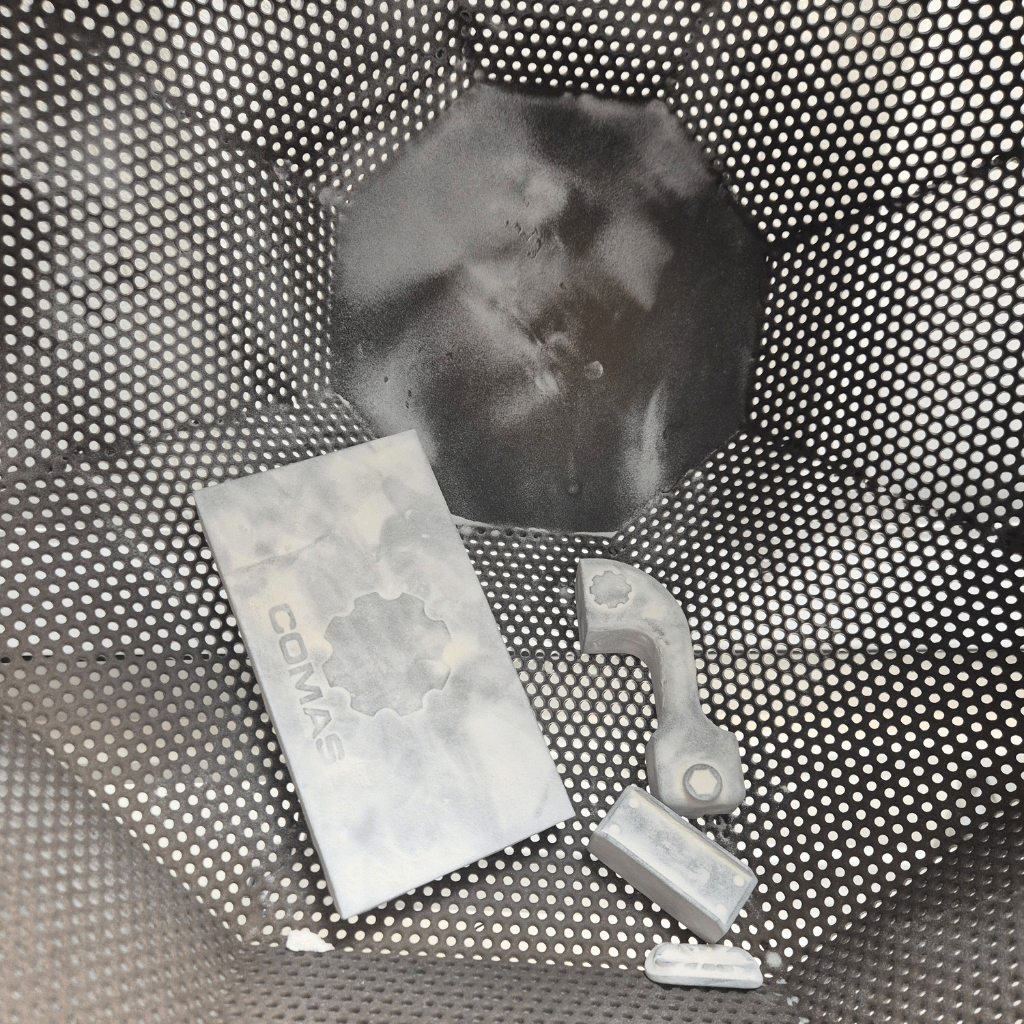

Vapor Smoothing: A controlled chemical finishing process where exposure to regulated vapors partially melts and reflows the part’s external surface. It delivers a uniform, glossy, and refined finish that significantly reduces porosity while maintaining mechanical integrity.
- Key Advantages: Eliminates surface roughness, seals porous structures (ideal for humid environments or fluid contact), improves mechanical strength by reducing stress points and micro-cracks, ensures superior hygiene and cleanability, and increases durability against wear, chemicals, and abrasion.
- Available Finishing Levels:
  - Soft: A light treatment suitable for functional components or prototypes where dimensional precision must be preserved and minimal roughness reduction is required.
  - Medium: A balanced finish offering the ideal combination of visual improvement and mechanical accuracy. Recommended for visible parts, assemblies, housings, and ergonomic components.
  - Max: The highest level of smoothing, delivering a near injection-molded appearance with glossy, sealed surfaces. Perfect for end-use consumer products, premium prototypes, and parts ready for direct sale.

When Is MJF the Best Choice for Manufacturing?

HP Multi Jet Fusion is the optimal solution when:

You need functional, end-use polymer parts — not just visual prototypes
You require near-isotropic mechanical properties across all three axes
You are producing medium-to-large batches (1–10,000+ parts) where cost efficiency matters
Your design features complex geometry, internal channels, lattice structures, or undercuts
You need fast turnaround — MJF builds are fast, and full beds can be nested efficiently
You are working with PA 12 or TPU as primary materials
Your project must move from prototype to production on the same technology, eliminating qualification re-work

Is MJF Cheaper Than SLS for Large Batches?

Yes, in most cases. Because MJF does not rely on a single-point laser (which limits throughput), and because full build volumes can be packed with parts efficiently (no wasted vertical space due to support structures), cost per part decreases significantly as batch size increases.

For production batches of 100–10,000 parts, MJF is typically 20–40% lower cost per unit than comparable SLS runs, depending on part geometry and machine utilization.

What Are the Lead Times for MJF vs SLS Production?

Lead Time Comparison: MJF vs SLS

Quantity	MJF typical lead time	SLS typical lead time
1–5 prototypes	2–4 business days	3–5 business days
50–500 parts	5–10 business days	7–14 business days
1,000–10,000 parts	2–4 weeks	3–6 weeks

At Prototek, we manage the entire workflow: from file validation and design-for-manufacturing feedback, to production, post-processing, and delivery — with dedicated technical support throughout.

Are MJF Parts Durable for End-Use Applications?

Yes. PA 12 MJF parts are routinely used in:

Automotive production tooling and jigs
End-of-arm tooling in automated assembly lines
Consumer products that face repeated mechanical stress.

Key durability data for PA 12 (MJF):

Tensile strength: 48 MPa for both XY and Z axes.
Elongation at break: 20% on the XY axis and 15% on the Z axis.
Heat deflection temperature: 175°C at 0.45 MPa.
Chemical resistance: Excellent chemical resistance to oils, greases, aliphatic hydrocarbons, and alkalies.

What Certifications Are Available for MJF Parts?

At Prototek, HP Multi Jet Fusion production is covered by:

ISO 9001 — Quality Management System certification covering the entire production process
ISO 27001 — Information Security Management System, protecting your design files and project data

Material datasheets and full traceability documentation are available upon request for regulated industries.

What Are the Environmental Considerations for MJF?

Powder reuse rate: MJF allows re-use of unfused powder with typical refresh rates of 20–30% new powder, significantly reducing material waste vs FDM (which generates support waste) and SLS (similar refresh economics)

No support structures: Zero material wasted on supports — a key sustainability advantage
Energy efficiency: MJF’s broad-area infrared process is more energy-efficient per unit volume than laser-based point scanning.

Common Failures With MJF Parts and How to Avoid Them

Issue	Likely Cause	Solution
Warping on flat parts	Thermal gradients in large thin sections	Orient parallel to X-Y plane for large flat parts; increase wall thickness to ≥1 mm
Closed holes	Diameter below 1 mm	Redesign to ≥1.5 mm (recommended 2 mm) or post-drill
Powder trapped inside hollow parts	No escape holes	Add ≥2 escape holes opposite each other, minimum 3.5 mm diameter (recommended 5 mm+)
Rough surface on cosmetic faces	As-built finish	Specify bead blast + dye in order
Dimensional deviation > ±0.3 mm	STL resolution error, material shrinkage (~2%), thermal effects	Export at 0.01 mm chord deviation; typical MJF tolerance is ±0.3 mm up to 100 mm, ±0.3% above 100 mm

"Where Can I Find MJF Service Providers? How to Choose?"

When selecting an HP Multi Jet Fusion (MJF) service bureau, evaluate:

Certifications (ISO 9001 minimum; ISO 27001 for IP-sensitive projects)
In-house technical support — can they review your design and suggest improvements?
Material range and machine fleet — multi-machine production capability for scalability
Post-processing capabilities — finishing in-house vs outsourced
Turnaround time guarantees
References in your sector.

Prototek specializes in MJF (PA 12, TPU) and Carbon DLS, with demonstrated experience across automotive, footwear, fashion, aerospace, and industrial machinery sectors.

We offer technical consultation before any order — because a better-designed part is a better part.

Ready to Test HP Multi Jet Fusion for Your Next Project?

Whether you need a single functional prototype or a scalable production run, our team can review your files, advise on design optimization, and give you a fast quote.

Request a consultation with Our Experts

[contact-form-7]

L'articolo HP Multi Jet Fusion for Industrial 3D Printing: The Complete Technical Guide proviene da Prototek.

Industrial Additive Manufacturing & 3D Printing Production

francescoodierna@gmail.com — Fri, 08 May 2026 10:47:29 +0000

Discover our scalable additive manufacturing production workflow.

At Prototek, we take your initial concepts and develop them into high-performance functional parts through state-of-the-art industrial additive manufacturing.

Whether you need small batches or high-volume runs, our 3D printing manufacturing processes guarantee precision, certified materials, and repeatability.

Additive manufacturing production as a driver of manufacturing: from DfAM to series

Additive manufacturing production is no longer a workaround for low volumes or complex geometries. For R&D managers, product engineers and technical leads across Europe’s most demanding industries, it has become a fully viable manufacturing strategy, one that removes tooling constraints, eliminates spare part inventory, and compresses time-to-market from weeks to days.

If you’re evaluating additive manufacturing as a production method — not just for prototyping — you’ve likely asked:

Can I move from functional prototype to serial production without switching technology or supplier?
Is it realistic to eliminate spare part stock without risking downtime?
Does DfAM actually improve component performance, or is it just geometric optimisation?

This article answers those questions directly, with technical depth and real-world industrial applications.

What is DfAM and why does it determine the success of additive manufacturing production?

DfAM — Design for Additive Manufacturing — is the design methodology that makes scalable AM production economically viable. It means exploiting the geometric freedom of 3D printing from the earliest stages of product development, rather than retrofitting a conventionally designed part into an AM process.

The distinction from classical design-for-manufacturing is fundamental:

Traditional Design	DfAM
Tooling and molding constraints	Total geometric freedom
Process optimization	Functional optimization
Slow and expensive iterations	Rapid digital cycles
Assembled components	Parts consolidated into a single piece

With DfAM, engineers can design internal lattice structures that reduce mass without sacrificing stiffness, conformal cooling channels, variable-density zones and organic geometries that are simply not achievable through CNC machining or injection moulding.

As leading AM researchers have noted, DfAM adds engineering value precisely by enabling lightweighting, part consolidation, mass customisation and on-demand production, overcoming the higher per-unit cost of AM compared to traditional methods, and making the switch to serial additive manufacturing production genuinely competitive.

How additive manufacturing production eliminates spare part inventory costs

One of the highest-ROI applications of serial additive manufacturing is on-demand spare parts production — and it’s where the economic argument is clearest.

The traditional spare parts model forces manufacturers to:

produce minimum batch quantities to justify tooling amortisation
hold stock for months or years, with associated capital and warehouse costs
manage obsolescence risk and disposal of excess inventory
sustain fixed costs regardless of actual demand

With additive manufacturing production, the model inverts entirely: the digital file is the warehouse.

When a spare part is needed — one unit, ten, several hundred, or thousands — the component is produced on demand, in certified materials, to the exact specification of the original. No stock. No obsolescence. No frozen capital.

This model is already operational across European industrial sectors:

Automotive and motorsport: low-volume parts for out-of-production vehicles, jigs, fixtures and support components
Industrial machinery and automation: production line spares, special tooling, custom fixtures produced to order
Marine and aerospace: certified components for critical environments, manufactured on commission.

Carbon DLS™: the technology for functional additive manufacturing production

Carbon DLS™ (Digital Light Synthesis™) is among the most advanced polymer additive manufacturing technologies available today for functional, end-use components in epoxy and elastomeric resins.

Unlike conventional stereolithography, Carbon DLS™ uses light and oxygen to drive continuous resin polymerisation, producing parts with:

Isotropic mechanical properties — consistent in all directions, unlike FDM
Smooth surface finish — no visible layer stratification
Certified materials — validated for industrial, medical and food-contact applications
Scalable production workflow — from 1 part to thousands, within the same digital process

Which Carbon DLS™ materials does Prototek work with?

Prototek operates across the full Carbon resin library, including:

EPX (82, 86FR, 150) — high-rigidity epoxy resins for structural components, including flame-retardant grades
RPU (70, 130) — tough, ductile resins with high-temperature and impact resistance
EPU (40, 41, 43, 45, 46) — polyurethane elastomers for flexible, impact-resistant parts
UMA 90 — rigid material for functional prototypes requiring tight dimensional tolerances
LOCTITE IND405 — rigid resin with transparent matte finish, high elongation and impact resistance.

All materials are certified and tested, with full technical datasheets available on request.

Industrial Additive Manufacturing: from Functional Prototypes to Certified Serial Production

Industrial additive manufacturing has fundamentally changed the economics of low-to-medium volume production across Europe’s most demanding sectors. Unlike desktop or prosumer 3D printing, industrial additive manufacturing operates within a framework of certified materials, traceable processes, and repeatable mechanical performance; the non-negotiable requirements of automotive, aerospace, medical device, and industrial automation supply chains.

Prototek’s industrial additive manufacturing infrastructure combines Carbon DLS™ and HP Multi Jet Fusion technologies with ISO 9001-certified production management, giving engineering and procurement teams a single partner capable of scaling from a validated prototype to a certified production batch without changing technology, supplier, or quality framework. Our industrial additive manufacturing service includes upstream DfAM consulting, material selection based on functional requirements, machine-level process control, and post-processing. All managed internally, with defined lead times and full dimensional traceability on every order.

For companies evaluating industrial additive manufacturing as a strategic alternative to injection moulding or CNC machining for specific components or product families, Prototek offers a free technical consultation to assess feasibility, unit cost, and time-to-production.

3D Printing Manufacturing: Replacing Traditional Processes Without Replacing Your Supply Chain

The shift to 3D printing manufacturing does not require a complete overhaul of your production strategy. It requires identifying the components, product families, or supply chain nodes where additive manufacturing delivers a measurable advantage over conventional processes, and integrating it precisely there.

Prototek’s 3D printing manufacturing service is designed for exactly this transition. Whether you are producing structural brackets that benefit from topology optimisation, elastomeric components that require complex internal geometries impossible to achieve with injection moulding, or low-volume spare parts that currently tie up capital in slow-moving inventory, our 3D printing manufacturing workflow provides a technically and economically viable alternative. With Carbon DLS™ for high-performance polymer components and HP MJF for high-volume thermoplastic production, we cover the two most relevant 3D printing manufacturing technologies for European industrial clients, under the same roof, managed by the same technical team, certified under ISO 9001.

The result is a 3D printing manufacturing partnership that reduces tooling investment, compresses iteration cycles, and gives your engineering team the geometric freedom to design components that actually perform better, not just components that are cheaper to produce.

Additive 3D Manufacturing as a Production Strategy: Beyond Prototyping

For many European industrial companies, additive 3D manufacturing still lives in the prototyping department; a tool for rapid iteration and concept validation, but not a serious candidate for serial production. That perception is now technically and economically outdated.

Modern additive 3D manufacturing platforms, specifically Carbon DLS™ and HP Multi Jet Fusion, the two core technologies in Prototek’s production facility, deliver mechanical properties, surface finishes, and dimensional tolerances that meet or exceed the requirements of functional end-use components in regulated industries.

Additive 3D manufacturing with Carbon EPX epoxy resins, for example, produces structural parts with isotropic mechanical behaviour and heat resistance comparable to engineering thermoplastics, while HP MJF with PA 12 delivers injection-moulding-equivalent performance for complex geometries at batch sizes from tens to thousands of units.

The strategic value of additive 3D manufacturing at production scale lies in what it removes from your cost structure: tooling investment, minimum order quantities, warehouse costs for slow-moving spare parts, and the lead time penalty of traditional manufacturing. Prototek’s role as your additive 3D manufacturing partner is to help you identify precisely where those removals are most impactful, and to execute the transition with the technical rigour your application demands.

3D Printing On Demand Manufacturing: Eliminate Inventory, Produce What You Need, When You Need It

3D printing on demand manufacturing is not a compromise between quality and flexibility. It is a production model that eliminates the structural inefficiencies of traditional batch manufacturing while maintaining certified, repeatable component quality. For industrial companies managing long product lifecycles, geographically distributed maintenance operations, or low-rotation spare parts with high criticality, on demand 3D printing manufacturing removes the single most expensive constraint in conventional supply chains: the obligation to produce before demand is confirmed.

With Prototek’s 3D printing on demand manufacturing service, your digital file is your warehouse. When a component is required — one unit, fifty, or five hundred — it is produced in the certified material and to the exact specification of the validated original, with a lead time measured in days rather than weeks.

Our on demand manufacturing workflow is built on Carbon DLS™ and HP MJF platforms that maintain consistent process parameters across every production run, ensuring that a part produced today is dimensionally and mechanically identical to one produced six months ago.

The industries already operating 3D printing on demand manufacturing through Prototek include automotive and motorsport, industrial machinery, where production line spares must be available without minimum order commitments, and marine and aerospace, where certified on demand 3D printing eliminates the obsolescence risk of slow-moving critical inventory.

Carbon Design Engine: the DfAM software behind scalable production

A critical element of the Carbon DLS™ ecosystem is Carbon Design Engine — the DfAM software developed by Carbon to automate and optimise part design for additive manufacturing production.

Design Engine integrates with standard CAD file formats, allowing design teams to work within their existing tools while accessing:

Automated lattice generation — lightweight internal structures calibrated for load and stiffness requirements
Variable density and rigidity zones — within a single printed component
Print feasibility validation — resolved upstream, before committing to production runs

The result: engineering teams focus on product innovation rather than production constraints.

The measurable advantages of DfAM in serial production

Applied correctly within an additive manufacturing production workflow, DfAM delivers advantages that traditional manufacturing cannot match:

Total part customisation — each component can be unique, adapted to individual users or specific assemblies, at no additional cost per variant.
Tooling cost elimination — no moulds, no dies, no minimum order quantities.
Faster iteration — digital design cycles measured in days, not weeks.
Weight and material optimisation — lattice structures and topology optimisation reduce mass while maintaining structural performance.
Sustainability — additive manufacturing production generates significantly less material waste than subtractive CNC processes; powder-based technologies like MJF enable recycling of up to 80% of unused material per build cycle.

HP Multi Jet Fusion and PA 12: additive manufacturing production at industrial scale

For higher volumes and geometrically complex parts in thermoplastic materials, Prototek uses HP Multi Jet Fusion (MJF) with nylon PA 12 (polyamide 12) and TPU.

MJF is engineered specifically for serial production: no support structures are required, parts nest in 3D within the build volume, and each cycle can produce dozens or hundreds of components simultaneously, with consistent mechanical properties throughout the batch.

Why PA 12 with MJF is the material of choice across automotive, footwear, fashion and mechanical component manufacturing:

Mechanical performance comparable to injection-moulded thermoplastics
Homogeneous surface finish, ready for painting or surface treatment
Certified biocompatibility (ISO 10993) for skin-contact applications
Dimensional stability across complex geometries and thin-wall sections

TPU with HP MJF adds controlled elasticity: ideal for soles, joints, gaskets, and shock-absorbing components, applications where Prototek partners with clients to develop high-performance components.

From prototype to certified series: the strategic value of a digital production workflow

The real advantage of additive manufacturing production is not purely technical — it is strategic and financial.

Integrating AM into both product development and spare parts management gives industrial companies:

Reduced time-to-market — design iterations in days, not weeks; production launched without tooling delays.
Elimination of tooling investment — no moulds, no minimum batch commitments, no setup costs.
Scalable customisation — each part can differ from the next at zero additional unit cost.
Progressive scalability — start with one part, scale to thousands within the same certified process and supply chain.
Project security — Prototek operates under ISO 9001 (quality management) and ISO 27001 (data security), protecting both production consistency and IP confidentiality.

This workflow is already embedded in the development and production cycles of companies such as Selle Italia, Cantiere Filippi and OMNIA Technologies — organisations where the margin between winning and losing is measured in grams, millimetres and days.

Additive manufacturing production: FAQs from R&D and engineering teams

1.Can DfAM be applied to existing components, or only to new designs?

Both. DfAM applies to components designed from scratch and to re-design for AM projects — existing parts redesigned to exploit additive manufacturing production. The process begins with a functional analysis of the original component: load paths, assembly constraints, surface and tolerance requirements. Redesign follows, optimised for the target AM technology and production volume.

2. How many parts can realistically be produced with industrial additive manufacturing?

There is no fixed ceiling. With HP MJF and Carbon DLS™, Prototek produces from single functional prototypes to batches of thousands of parts within weeks, maintaining certified dimensional consistency and mechanical performance across the full production run.

3. How do you guarantee repeatability across production batches?

Every production process is documented and traceable under ISO 9001 procedures. Print parameters, material lots and dimensional inspection data are standardised and recorded on every order, giving clients full traceability from file to finished part.

4. How does additive manufacturing production compare in terms of sustainability?

Additive manufacturing generates significantly less material waste than CNC machining and eliminates tooling, which carries substantial embodied energy and material cost. On-demand production for spare parts removes the environmental cost of warehousing and disposing of obsolete stock: a direct benefit for companies managing long product lifecycles or low-rotation components.

Why partner with Prototek for additive manufacturing production in Europe

Prototek is not a commodity 3D printing bureau. We are a technical production partner that enters projects upstream — at the DfAM and material selection stage — and stays engaged through to certified series production.

What sets us apart:

Technical know-how — our team advises on technology selection, material suitability and DfAM optimisation before a single part is printed
Scalable production capacity — from 1 part to thousands, under the same certifications and quality standards
Leading technologies — Carbon DLS™ and HP Multi Jet Fusion, covering both polymer performance and volume scalability
Data security — ISO 27001 certification protects your design files and project IP throughout the production process
Reliable lead times — defined and respected, critical for product launch windows and production schedules with no margin for delay. We take care of our customers’ security works.

Conclusion: additive manufacturing production is ready for European industry

In 2026, the shift from prototyping to certified serial production with additive manufacturing is no longer a future scenario. It is already happening across automotive, aerospace, marine, industrial machinery, and consumer goods manufacturing in Europe.

Companies that integrate AM production now — into both product development cycles and spare parts logistics — are removing tooling bottlenecks, compressing lead times and building supply chain resilience that compounds over time.

The question is no longer “does additive manufacturing work for our application?” It is “are we already using it as effectively as our competitors?”

Contact us for a free technical consultation. We will assess your component or production requirement and propose the most effective solution in terms of technology, material, and unit cost, with no obligation.

Contact Prototek's Experts
to request a consultation or a quote for your next 3D printing project.

[contact-form-7]

L'articolo Industrial Additive Manufacturing & 3D Printing Production proviene da Prototek.

Additive Manufacturing Automotive: From Prototyping to Scalable Production

francescoodierna@gmail.com — Thu, 07 May 2026 09:17:46 +0000

Additive manufacturing automotive: in this industry, it has moved well beyond prototyping labs.

Today, R&D teams and engineering departments across Europe use industrial 3d printing to produce functional prototypes, customized components, and small-to-mid series parts — without tooling investment, without minimum order quantities, and without compromising on mechanical performance.

From electronic housings to structural brackets, from aerodynamic components to custom interior parts: this article covers what is technically possible today, which materials and technologies are involved, and how leading automotive manufacturers are already integrating additive manufacturing into their production workflows.

Why Additive Manufacturing Has Become Strategic in Automotive?

The automotive sector has been among the earliest adopters of industrial 3D printing — and for good reason. Development cycles are long, the cost of late-stage design changes is high, and pressure on time-to-market is constant across all segments, from passenger vehicles to motorsport.

Additive manufacturing addresses three core engineering challenges:

Faster iteration cycles: from CAD to physical part in 24–72 hours, with no tooling required
Zero inventory pressure: produce only what is needed, when it is needed — eliminating warehouse stock entirely
Unrestricted geometry: internal channels, undercuts, lattice structures, thin walls — geometries that injection moulding cannot replicate.

The scale of adoption speaks for itself. The BMW Group alone has installed over one million additively manufactured components in the past decade, with a 42% year-on-year increase in output recorded by its dedicated additive manufacturing division — and the trend shows no sign of slowing.

Across the industry, Additive manufacturing has shifted from a prototyping tool to a standard production resource, driven by faster technology cycles, broader material availability, and increasing pressure on time-to-market.

What Gets Produced with Additive Manufacturing in Automotive?

Functional Prototypes and Engineering Validation

Before a component enters production, it must pass functional testing, assembly verification, and engineering sign-off. Additive manufacturing makes it possible to:

Produce dimensionally accurate prototypes for fit & function checks
Iterate rapidly between design versions without retooling costs
Deliver physical samples to engineering teams on sprint-compatible timelines

Dimensional accuracy from HP Multi Jet Fusion and Carbon DLS™ ensures every prototype is fully representative of the final component — not an aesthetic approximation.

Jigs, Fixtures, and Production Tooling

One of the highest-ROI applications in automotive — and one of the most underestimated — is the production of auxiliary manufacturing equipment:

Custom assembly fixtures designed around specific part geometries
Quality control gauges for dimensional inspection
Ergonomic operator supports tailored to individual workers (BMW, for example, uses additively manufactured hand supports on assembly lines to reduce thumb strain).

These tools can be updated rapidly, adapted to new vehicle variants, and produced on demand — eliminating the long lead times of conventional machining.

Series Production: Small and Medium Volumes

When volumes do not justify injection mould tooling — or when geometry is too complex — Additive manufacturing automotive becomes the most efficient production route:

Window guides, interior supports, air ducts, electronic covers
Limited-edition or custom vehicle components
On-demand spare parts with immediate availability, no physical stock required

BMW i8 window guides have been produced in HP Multi Jet Fusion at a rate of 100 parts in under 24 hours, with consistent and documentable quality — a production benchmark that traditional methods cannot match at this volume.

Materials for Additive Manufacturing Automotive: Verified Technical Data

Material selection is decisive. At Prototek, we work with certified materials across two technology platforms — HP Multi Jet Fusion and Carbon DLS™ — covering the full spectrum of automotive requirements.

PA 12 — HP Multi Jet Fusion

The reference thermoplastic for functional series components in automotive applications.

Typical applications: electronic housings, connectors, ducts, interior components, complex assemblies, supports.

Key properties:

Excellent chemical resistance to oils, greases, aliphatic hydrocarbons and alkalis
High part density with balanced production cycles
Precise dimensional detail: small holes, thin walls, bosses
Industry-leading powder reusability (20% refresh rate)
Compatible with post-finishing processes: painting, metallisation

Property (Nylon PA12)	Value
Density of parts	1.01 g/cm³
Powder melting point (DSC)	187 °C
Tensile Strength, Max Load (XY & Z)	48 MPa
Tensile Modulus (XY)	1700 MPa
Tensile Modulus (Z)	1800 MPa
Elongation at Break (XY)	20%
Elongation at Break (Z)	15%
Heat Deflection Temp (@ 0.45 MPa) - Z	175 °C
Heat Deflection Temp (@ 1.82 MPa) - Z	95 °C

TPU (Estane® 3D M88A) — HP Multi Jet Fusion

Flexible thermoplastic polyurethane for components requiring elastomeric behavior.

Typical applications: seals, grommets, anti-vibration isolators, protective covers, flexible retention elements.

Property (TPU M88A)	Value
Hardness (Shore A)	88
Tensile Strength	22 MPa
Elongation at Break	> 500%
Tear Strength	65 kN/m

Rigid Resins — Carbon DLS™

Carbon DLS™ (Digital Light Synthesis™) produces parts with isotropic mechanical properties, high-quality surfaces, and complex internal geometries, not achievable with powder bed technologies.

EPX 82 — Structural Epoxy Resin

Combines functional toughness, stiffness, and temperature resistance. Suitable for a wide range of automotive, industrial and consumer applications.

Typical applications:

Structural functional prototypes, brackets, air ducts, supports exposed to continuous mechanical stress, and components operating in moderately demanding thermal environments.

Property (EPX 82)	Value
Tensile Strength	82 MPa
Tensile Modulus	2800 MPa
Elongation at Break	5%
Heat Deflection Temp (HDT @ 0.45 MPa)	125 °C

EPX 86 FR — Flame-Retardant Epoxy Resin

Unique combination of flame retardance, functional toughness, high strength, and long-term stability. Certified UL 94 V-0 and FAR 25.853(a).

Typical applications: components near electrical systems, cabin interior parts, any application requiring flame-retardant certification.

Property (EPX 86FR)	Value
Tensile Strength	86 MPa
Tensile Modulus	3000 MPa
Elongation at Break	5.5%
Heat Deflection Temp (HDT @ 0.45 MPa)	135 °C
Flammability Rating	V-0 (UL94)

RPU 130 — High-Performance Impact-Resistant Polyurethane

Strong and tough engineering polyurethane with a unique combination of durability, impact resistance, and elevated temperature performance.

Typical applications: impact-critical components, functional parts requiring high toughness at elevated temperatures.

Property (RPU 130)	Value
Tensile Strength	65 MPa
Tensile Modulus	1800 MPa
Elongation at Break	10%
Heat Deflection Temp (HDT @ 0.45 MPa)	119 °C

Elastomeric Resins — Carbon DLS™

For flexible, shock-absorbing applications in Additive manufacturing for automotive.

EPU 40 — High-Elasticity Elastomer

High-performance polyurethane elastomer for applications requiring high elasticity and tear resistance.

Property (EPU 40)	Value
Hardness (Shore A)	64
Tensile Strength	9 MPa
Elongation at Break	> 250%
Tear Strength	20 kN/m

EPU 41 — High-Resilience Lattice Elastomer

Production-grade elastomeric material especially suited for elastomeric lattices where high resiliency is needed.

Property (EPU 41)	Value
Hardness (Shore A)	70
Tensile Strength	11 MPa
Elongation at Break	> 130%
Tear Strength	20 kN/m
Rebound Resilience	62%

EPU 43 — Energy-Damping Elastomer for High-Cycle Fatigue

Soft elastomer with good energy damping and excellent durability under high-cycle flexing.

Property (EPU 43)	Value
Hardness (Shore A)	71
Tensile Strength	15 MPa
Elongation at Break	> 200%
Tear Strength	24 kN/m

EPU 45 — Exceptional Energy-Damping Elastomer

Energy-damping elastomer with exceptional damping performance and optimised printability.

Property (EPU 45)	Value
Hardness (Shore A)	62
Tensile Strength	18 MPa
Elongation at Break	> 250%
Tear Strength	30 kN/m

EPU 46 — Bio-Based Elastomer (40% Biobased Content)

Flexible polyurethane resin, with high energy-return, offering colour and stiffness customisation, with 40% biobased content. Available in Black, Color Base, Soft and Extra Soft variants.

Note: EPU 46 stiffness is adjustable through the A:B ratio. Contact Prototek to select the most suitable variant for your application.

Typical elastomeric applications in automotive: high-performance seals, damping pads, ergonomic inserts, fatigue-cycled gaskets, lattice structures for lightweight impact absorption.

Property (EPU 46)	Value
Hardness (Shore A)	56-78
Tensile Strength	14 MPa
Elongation at Break	> 220%
Tear Strength	22 kN/m

Case Study: BMW Group
Additive Manufacturing Automotive as an Industrial Standard

The BMW Group is one of the most extensively documented examples of the integration of systematic Additive manufacturing automotive at an industrial scale. Today, the Group produces more than 400,000 parts a year worldwide through additive manufacturing, with over 1.6 million parts produced since the launch of its Additive Manufacturing Campus in Oberschleißheim in 2020.

Mini Yours Customised

In 2019, through the Mini Yours Customised programme, BMW brought additive manufacturing automotive directly to the end customer: side indicators, dashboard trims, and illuminated door sills — all personalised to individual buyer specifications. A business model that conventional production could never have supported at this cost and lead time. BMW received the German Innovation Award Gold for this project.

BMW i8 — Window Guides in HP Multi Jet Fusion

For the i8, BMW adopted HP Multi Jet Fusion for series production of window guides: 100 components produced in under 24 hours, with consistent quality and a per-part cost competitive with conventional manufacturing.

Ergonomic Operator Supports

Custom hand supports — modelled on each assembly worker’s individual hand morphology — reduce thumb strain during repetitive operations on the production line. Each device is shaped around the specific worker. Impossible to replicate with any other production method.

Case Study: Confederate Motors (now Combat Motors)

Founded in 1991 with the ambition of building unmistakably rebellious motorcycles, Confederate Motors designed and produced exclusive bikes in small batches for over 25 years. The company has since undergone a significant evolution — giving rise to Curtiss Motorcycle Company and continuing its combustion legacy under the name Combat Motors — but its engineering pioneering spirit remains intact.

The introduction of additive manufacturing into the production workflow allowed the company to cut development times and production costs dramatically.

Technology partnership: The project was built around stereolithography technology by 3D Systems — since evolved into what is now considered its natural successor, Carbon DLS™ — which accelerated product development and ensured the highest quality across all produced models.
The P51 Combat Fighter: Critical structural components — frame, steering, and swingarm — were all produced using additive manufacturing. Moulds for carbon fibre parts (front and rear mudguards, exhaust filter, chain guard) were realised using Accura PEAK material.

“3D Systems allows us to design exceptional shapes and moulds from solid materials. The machines are so precise that the changes required between prototype and production are minimal. We only had to make a few adjustments to the project.” — Jordan Cornille, designer at Confederate Motors

How Prototek Works with Automotive Companies

Prototek is not a bureau that receives files and prints. Our value is in integrated technical consulting — accompanying every project from initial analysis through to final part delivery.

Our process:

Project analysis — we evaluate geometry, optimal material, best-fit technology, and required tolerances
DfAM (Design for Additive Manufacturing) — where relevant, we propose geometric optimisations to improve printed part performance
Certified production — we operate under ISO 9001 for quality management and ISO 27001 for project data security
Full scalability — from a single prototype to thousands of parts, with the same technical partner throughout

For recurring production needs, we also manage just-in-time logistics, eliminating the need for physical stock entirely.

Frequently Asked Questions

1. Which materials are certified for automotive use?

Thermoplastics, like nylon PA 12 and TPU processed with HP MJF, and Carbon DLS™ rigid/epoxy and polyurethane resins (EPX 82, EPX 86 FR, EPX 150, RPU 70, RPU 130 for rigid applications; EPU 40, EPU 41, EPU 43, EPU 45, EPU 46 for elastomeric applications) all come with certified technical datasheets and documented mechanical properties tested to ASTM and ISO standards.

2. Can additive manufacturing replace injection moulding in automotive?

For volumes from 1 to several thousand parts, and for complex geometries, additive manufacturing is often more cost-effective — injection moulding requires expensive tooling that must be amortised over large volumes. For high-volume standardised series, the two methods complement each other.

3. How is dimensional repeatability guaranteed across batches?

HP MJF and Carbon DLS™ technologies deliver tight, repeatable dimensional tolerances. Our ISO 9001-certified quality system includes systematic, documented dimensional inspection for every production batch.

4. How long from CAD file to physical part?

For PA 12 or TPU MJF parts: 24 to 72 hours standard production. For Carbon DLS™ resin components: 48 to 96 hours, depending on complexity. For serial production, we agree on a tailored delivery schedule.

5. How does Prototek handle project confidentiality?

We are ISO 27001 certified — the international standard for information security management. Every project is handled with full confidentiality.

6. Does Prototek ship to other European countries?

Yes. Prototek ships throughout Europe. Lead times and logistics are agreed on a per-project basis. Contact us to discuss your requirements.

Start with a Pilot Project in Additive Manufacturing Automotive

Additive manufacturing offers measurable advantages at every stage of the automotive development cycle — from functional prototyping to on-demand series production. HP Multi Jet Fusion and Carbon DLS™, combined with certified materials and verified technical data, make it possible to produce automotive-grade components with the performance the industry demands.

Contact the Prototek team for a no-obligation technical consultation. We analyse your requirements and propose the right material, technology and volume strategy for your project.

Prototek is a professional 3D printing service certified ISO 9001 and ISO 27001. Technologies: HP Multi Jet Fusion (PA 12, TPU), Carbon DLS™ (EPX 82, EPX 86 FR, EPX 150, RPU 70, RPU 130, EPU 40, EPU 41, EPU 43, EPU 45, EPU 46). Reference customers: Selle Italia, Filippi, OMNIA Technologies, IDM Automation and others.

Contact Prototek's Experts
to request a consultation or a quote for your next 3D printing project.

[contact-form-7]

L'articolo Additive Manufacturing Automotive: From Prototyping to Scalable Production proviene da Prototek.

3D Printing vs Injection Moulding: When Does AM Become Cost-Effective?

francescoodierna@gmail.com — Mon, 20 Apr 2026 10:25:31 +0000

3D Printing vs Injection Moulding | A data-driven framework, with real cost benchmarks and an interactive break-even calculator, to help engineers and procurement managers make the right manufacturing decision at every production volume.

There is no single break-even volume that applies to all parts. Additive manufacturing (with HP MJF or Carbon DLS™ technologies) is cost-effective from 1 single unit up to several thousand — and in sectors like footwear or industrial automation, it remains competitive well beyond 5,000–10,000 units when geometry is complex or design iterations are expected. The right answer depends on five factors:
sector, volume, geometric complexity, design stability, and time-to-market urgency.

3D Printing vs Injection Moulding | The Core Economic Difference: Fixed vs. Variable Costs

The fundamental difference between 3D printing and injection moulding is not technology — it is cost structure. Injection moulding carries a large fixed cost upfront (the mould), then a very low variable cost per part. 3D printing has zero tooling cost, but a higher, and relatively flat, cost per part across volumes.

This creates a cost curve — but one that looks very different depending on your sector, part geometry, and how often you expect to revise the design. A footwear sole with 15 size variants behaves completely differently from a standard automotive bracket at the same volume. The decision tool below reflects that complexity.

Make-or-Buy Decision Tool

Answer six questions about your part and get a technology recommendation grounded in Prototek’s engineering experience across automotive, footwear, industrial automation, fashion, and aerospace.

Decision Tool · Prototek

3D Printing or Injection Moulding?

Find out in 6 questions.

The right answer depends on your sector, volume, geometric complexity, and project maturity — not just the number of parts. This tool replicates the logic Prototek engineers apply in every technical consultation.

Question 1 of 6

Real-World Cost Benchmarks

The numbers below are derived from Prototek’s production data across industrial sectors. They represent indicative ranges for medium-complexity parts (palm-sized, 50–200 cm³ volume).

TECHNOLOGY

HP Multi Jet Fusion — PA12

Tooling cost€0

Setup / NRE€0–200

Cost per part (×1)€60–150

Cost per part (×100)€25–55

Cost per part (×1,000)€15–35

Lead time (first parts)3–5 days

TECHNOLOGY

Carbon DLS — EPU / CE

Tooling cost€0

Setup / NRE€0–300

Cost per part (×1)€80–250

Cost per part (×100)€40–90

Cost per part (×1,000)€25–55

Lead time (first parts)3–7 days

TECHNOLOGY

Injection Moulding — PA / PP

Tooling cost€8,000–80,000+

Setup / NRE€500–2,000

Cost per part (×1)€8,000+ (mould)

Cost per part (×1,000)€12–30

Cost per part (×10,000)€3–10

Lead time (first parts)6–14 weeks

3D Printing vs Injection Moulding | Key insight: At 1,000 units, HP MJF (PA12) and injection moulding often reach cost parity for medium-complexity parts — but Additive Manufacturing requires zero upfront commitment and allows design changes at any stage. For parts with annual volumes under 2,000 units, or with frequent design iterations, the total cost of ownership favours AM even when the per-part price appears higher.

Full Comparison: Beyond the Unit Price

A make-or-buy decision should never be based on per-part cost alone. The table below captures the full picture across the factors that matter to engineers and procurement teams.

Decision Factor	3D Printing (HP MJF / Carbon DLS)	Injection Moulding
Tooling cost	€0 — no mould required	€8,000–80,000+ upfront
Time to first part	3–7 days	6–14 weeks
Minimum order quantity	1 unit	Typically 500–1,000+
Design change cost	Zero — modify CAD, reprint	€2,000–15,000 mould rework
Geometric complexity	Internal channels, lattice, undercuts — no penalty	Draft angles, no undercuts, no internal voids
Part-to-part consistency	High (±0.2 mm typical)	Very high (±0.05–0.1 mm)
Material range	PA12, TPU, EPU, CE (epoxy), growing range	Very broad (any injection-grade polymer)
Inventory risk	On-demand — produce only what you need	MOQ forces excess stock
IP / data security	ISO 27001 certified (Prototek)	Varies by supplier
Optimal volume range	1 to ~10,000+ units / year	5,000 to millions / year

When to Choose 3D Printing vs Injection Moulding— Decision Rules

Choose AM (MJF or Carbon DLS™) when:

Annual volume is below 2,000–5,000 units for thermoplastic parts**
The part is in an active development phase — design changes are likely
Geometry is complex: internal channels, lattice structures, organic shapes
You need parts within days, not weeks (NPI, spare parts, tooling)
You want to eliminate inventory and produce on-demand
You need customised or personalised parts (different sizes, configurations)
You are consolidating multiple components into a single printed part

Choose Injection Moulding when:

Annual volume consistently exceeds 5,000–10,000 units
Part design is fully frozen — no design iterations expected
Part geometry is simple, compatible with standard tooling
You need materials not yet available in AM (PP, ABS in large volumes, transparent polymers)
Unit cost is the only metric (long-run commodity production).

**Depending on the product, material, and technology, AM is also suitable for scalable batches of up to 10,000 units or more.

The hybrid approach: many Prototek customers use Additive Manufacturing for the first 500–2,000 units (validation phase, early market), then evaluate tooling investment once design is stable and volumes are proven. This avoids the risk of committing €20,000–80,000 to a mould for a product that may still change.

Frequently Asked Questions

1. At what quantity does 3D printing become more expensive than injection moulding?

The break-even point depends on three factors: mould cost, AM cost per part, and injection moulding variable cost per part. For a typical industrial part with a €20,000 mould, an AM cost of €35/part, and IM variable cost of €6/part, the break-even is approximately 690 units. For a simpler part with a €8,000 mould, break-even can be as low as 250 units.

2. Is 3D printing cheaper than injection moulding for small quantities?

Yes, for quantities below 500–2,000 units, 3D printing with HP MJF or Carbon DLS™ is almost always the lower total-cost option. This is because injection moulding requires a mould investment of €8,000–80,000 before the first part is produced, while AM has zero tooling cost. At low volumes, this upfront cost cannot be amortised, making injection moulding economically inefficient.

3. What hidden costs does injection moulding have that 3D printing avoids?

Beyond mould cost, injection moulding requires: 6–14 weeks of tooling lead time (delaying time-to-market), minimum order quantities that force excess inventory, mould rework costs of €2,000–15,000 for each design change, and storage costs for stock. 3D printing eliminates all of these, enabling on-demand production with no minimum quantities and zero rework costs when design changes are needed.

4. Can 3D printed parts replace injection moulded parts in terms of mechanical properties?

With HP MJF (PA12, TPU) and Carbon DLS™ technologies (epoxy and polyurethane resins), 3D printed parts achieve mechanical properties comparable to injection moulded equivalents for most industrial applications. HP MJF PA12 parts are isotropic — unlike FDM — with tensile strength of 48 MPa and elongation at break of 18–20%. Carbon DLS™ epoxy resins exceed 70 MPa tensile strength. For high-volume structural applications with tight tolerances, injection moulding may still be preferred, but for functional industrial parts the gap has effectively closed.

5. How long does it take to get parts with 3D printing vs injection moulding?

With Prototek, first 3D printed parts are typically delivered in 3–7 working days from approved files. Injection moulding requires 6–14 weeks for mould fabrication before the first part can be produced. This 10–15x lead time advantage makes AM the standard choice for new product introduction, tooling, spare parts, and any application where speed-to-market is a competitive factor.

Not sure which technology fits your part?

Prototek’s engineering team analyses your geometry, volume, and requirements — and gives you an honest cost comparison. ISO 9001 and ISO 27001 certified. Based in Italy, serving Europe.

Request a Free Technical Consultation with Our Experts

[contact-form-7]

L'articolo 3D Printing vs Injection Moulding: When Does AM Become Cost-Effective? proviene da Prototek.

Resins 3D Printing vs FDM Filaments: How to Choose the Right Material for Industrial Parts

francescoodierna@gmail.com — Fri, 17 Apr 2026 13:48:08 +0000

By Prototek Engineering Team | Additive Manufacturing | Materials Guide

The short answer | resin 3D printing: FDM (Fused Deposition Modeling) deposits molten filament layer by layer, creating visible bonding interfaces between each pass. Carbon DLS™ resins, by contrast, cure as a continuous, homogeneous structure — resulting in isotropic mechanical properties, superior surface finish, and dramatically better performance under stress. For industrial applications where mechanical integrity, elasticity, and dimensional accuracy matter, elastomeric Carbon DLS™ resins are in a different performance category entirely.

FDM vs Carbon DLS™ Resins: What Happens Inside the Material?

In FDM printing, thermoplastic filament (such as PLA, ABS, or Nylon) is heated and extruded through a nozzle, deposited line by line. Each layer bonds thermally to the previous one, but this interface remains the weakest point in the structure.

The result is an inherently anisotropic part: strong along deposition paths, weaker across layer interfaces. Under tensile stress, cyclic loading, or impact, failure typically initiates along these planes.

Carbon DLS™ resin 3D printing works through a different mechanism. A photopolymer resin is cured continuously using projected UV light through an oxygen-controlled interface. The part is formed as a single, uninterrupted structure with no layer boundaries or directional weak points.

A secondary thermal cure activates a second polymer network within the material, increasing strength and stabilizing mechanical behavior.

The practical implication: a Carbon DLS™ part is not a stack of fused layers. It is a monolithic engineered component.

Elastomeric Resins: What FDM Cannot Replicate

For applications requiring flexibility, energy absorption, or dynamic mechanical response, FDM elastomers (typically TPU filaments) offer a basic solution — but with significant limitations.

The layer-by-layer structure creates stress concentrations at interfaces, limiting stretch before failure and reducing fatigue life under repeated compression or bending.

Carbon’s elastomeric polyurethane resins — EPU 40, EPU 41, EPU 43, EPU 45, and EPU 46 — are purpose-engineered for exactly these demands. Each grade offers a distinct combination of Shore hardness, elongation at break, tensile strength, and energy return.

This means engineers can select not just “a flexible material” but a precisely tuned mechanical behaviour matched to the application.

Key performance advantages of Carbon elastomeric resins over FDM TPU:

Tensile strength and elongation at break are consistent in all directions — no weak layer planes.
Shore hardness is selectable across grades, from very soft (EPU 40) to firm elastomeric (EPU 46), enabling application-specific tuning.
Variable density lattice structures can be designed and printed with graded stiffness zones within a single part — physically impossible with FDM.
Fatigue resistance under cyclic loading is significantly higher, critical for seals, cushioning systems, wearables, and dynamic mechanical components.
Surface finish is smooth and consistent, suitable for end-use parts without post-processing.

EPU 46, Prototek’s most widely specified elastomeric resin, delivers a higher energy return and greater rigidity within the elastomeric range — making it the material of choice for high-performance applications such as cycling saddles (see Selle Italia SLR 3D), protective equipment, and ergonomic industrial grips.

Which Material Is Right for Your Application?

Requirement	FDM (TPU Filament)	Carbon DLS™ (EPU Series)
Isotropic properties	No	Yes
Adjustable Shore hardness	Limited	Yes (EPU 40–46)
Lattice density control	No	Yes
Surface finish	Requires finishing	Production-ready
Fatigue resistance	Medium	High
Production scalability	Low–Medium	Medium–High
Certification & traceability	Variable	Full (ISO 9001 environments)

Carbon Resin 3D printing vs FDM

Frequently Asked Questions

What is the main difference between FDM and Carbon DLS™ resins? FDM creates parts by fusing separate filament layers, resulting in directional weakness at layer interfaces. Carbon DLS™ cures the part as a continuous, homogeneous structure with consistent properties in all directions.
Are Carbon elastomeric resins stronger than FDM TPU? Yes, in most industrial performance metrics. Carbon EPU resins offer higher tensile strength, better elongation at break, superior fatigue resistance, and isotropic properties that FDM TPU cannot match due to its layer-bonding structure.
Can I get different Shore hardness values with Carbon DLS™? Yes. Prototek offers the full Carbon EPU range (EPU 40 through EPU 46), each with a distinct hardness and mechanical profile, allowing precise material selection for your application requirements.
When does FDM make sense over Carbon DLS™? FDM is a viable choice for early-stage conceptual prototypes, large-volume low-stress parts, or applications with minimal mechanical demands where cost per part is the primary driver. For functional prototypes, end-use parts, or any elastomeric application requiring consistent performance, Carbon DLS™ is the correct choice.

Prototek is an ISO 9001 and ISO 27001 certified professional 3D printing service based in Italy, operating 22 industrial printers — including 7 Carbon DLS™ units — 24/5.

We support engineers and R&D teams from first geometry to scaled production.

→ Request a free technical consultation | Explore Carbon DLS materials

[contact-form-7]

L'articolo Resins 3D Printing vs FDM Filaments: How to Choose the Right Material for Industrial Parts proviene da Prototek.

Custom 3D Printing On Demand & Rapid Prototyping Services

francescoodierna@gmail.com — Tue, 03 Mar 2026 10:21:44 +0000

Prototek is your reliable partner for 3D print on demand and rapid prototyping.

We specialize in custom additive manufacturing, guiding your project from the initial concept to full-scale 3D printing production.

Whether you are looking for a reliable rapid prototyping service to validate a design, durable 3D printed production parts, or a trusted partner for additive manufacturing spare parts, our advanced technologies deliver speed, precision, and scalability.

High-Quality 3D Printed Production Parts

In today’s competitive manufacturing environment, reducing development cycles while maintaining mechanical reliability is no longer optional.

3D print on demand and rapid prototyping have become strategic tools for companies seeking faster validation, cost efficiency, and scalable innovation.

Traditional prototyping methods—CNC machining or injection molding—often require long lead times and high upfront tooling costs. In contrast, 3d printing production eliminates tooling constraints, enabling rapid iteration and functional validation within days rather than weeks.

For European manufacturers facing supply chain instability and pressure to accelerate time-to-market, industrial print 3D on demand and rapid prototyping services offer a measurable competitive advantage.

From Concept to Functional Part with 3D Print On Demand

A professional rapid prototyping service is no longer limited to visual models.

Today’s additive technologies and 3D print on demand enable production-grade components with mechanical properties suitable for:

Structural housings
Snap-fit assemblies
End-use mechanical components
Jigs and fixtures
Low-volume industrial production.

Advanced 3D technologies such as Carbon (with its Digital Light Synthesis™ process – DLS™) and HP (with Multi Jet Fusion – MJF technology) have redefined what engineers can expect from polymer additive manufacturing.

Carbon DLS™ Technology

Carbon DLS™ for Print 3D On Demand and rapid prototyping enables isotropic mechanical properties, smooth surface finishes, and elastomeric or rigid engineering materials. It is particularly suitable for:

Functional end-use parts
Complex geometries
High-detail mechanical components
Elastomeric seals and lattices.

HP Multi Jet Fusion (MJF)

HP Multi Jet Fusion delivers:

High dimensional accuracy
Excellent repeatability
Strong mechanical performance
Cost-effective batch production

For companies evaluating alternatives to injection molding for short runs, MJF is often a technically and economically viable rapid manufacturing 3d printing solution.

High-Quality 3D Printed Production Parts

Market Needs Driving Adoption of 3D Print On Demand

European industrial companies are not adopting 3D print on demand and rapid prototyping services just for trend reasons.

Adoption of custom additive manufacturing is driven by measurable operational constraints: compressed innovation cycles, cost volatility, supply chain fragility, and increasing demand for customization.

3d Printing Production Benefits & On-Demand Additive Manufacturing Spare Parts

1. Time-to-Market Reduction

In competitive sectors—automotive components, industrial automation, consumer electronics, medical devices—product lifecycles are shrinking. Delays in prototyping directly translate into lost market share.

Traditional tooling workflows introduce friction:

Mold design and validation
Tool manufacturing lead times (6–12+ weeks)
Tool modification costs in case of design revisions

With Print 3D On Demand and rapid prototyping, iteration becomes digital and immediate. Engineers can:

Validate form, fit, and function within days
Perform mechanical stress testing on functional prototypes
Optimize assemblies before final tooling investment
Run pilot batches for early customer validation

This reduces development risk and accelerates commercialization.

2. Design Freedom and Engineering Optimization

Subtractive manufacturing and molding impose geometric constraints. Undercuts, internal channels, lattice cores, and topology-optimized structures often require complex tooling or are economically unfeasible.

Additive manufacturing removes these constraints.

Engineering advantages include:

Lightweight lattice structures with maintained rigidity
Internal fluid channels for cooling or airflow
Consolidation of multiple components into a single printed part
Organic geometries derived from topology optimization software

This design freedom directly improves:

Performance-to-weight ratio
Thermal management
Assembly simplification
Reduced failure points

For R&D departments, 3D printing and rapid prototyping become enablers of performance engineering—not just prototyping tools.

3. Supply Chain Resilience and Localization

Global supply chains have demonstrated structural fragility due to geopolitical instability, logistics disruptions, and raw material shortages.

Manufacturers increasingly prioritize:

Regional production capacity
Reduced reliance on offshore tooling
Shorter logistics routes
Faster replenishment cycles.

The ability to produce additive manufacturing spare parts on demand eliminates the need for physical inventory. Digital files replace physical tooling, allowing localized manufacturing near the point of demand.

This shift improves:

Lead time predictability
Inventory agility
Operational continuity

In sectors with high spare-part variability, digital inventories reduce exposure to global disruptions.

4. Cost Control for Low and Medium Volumes

Injection molding remains cost-efficient at high volumes. However, for batches ranging from 1 to several thousand units, tooling amortization significantly increases unit cost.

Additive manufacturing eliminates:

Mold fabrication costs
Tool maintenance expenses
Tool redesign iterations

For low-volume production, bridge manufacturing, or aftermarket components, Print 3D On Demand and rapid prototyping often deliver lower total lifecycle cost.

This is particularly relevant for:

Industrial equipment spare parts
Specialized machinery components
Limited product series
Market testing batches

Cost predictability becomes a strategic advantage.

5. Custom Additive Manufacturing

Modern markets demand personalization—ergonomic adaptations, performance variations, sector-specific modifications.

Traditional manufacturing penalizes customization because every variation may require:

Separate tooling
Increased setup time
Higher inventory complexity

3d print on demand enables mass customization without tooling modifications.

3d printed production parts can be digitally altered without disrupting production workflows.

Applications include:

Customized enclosures
Personalized industrial interfaces
Application-specific mechanical components
Variant-driven product families.

Beyond core components, this process is ideal for creating additive manufacturing spare parts without minimum order quantities. This flexibility supports both B2B and high-value industrial customization models.

6. Inventory Reduction and 3d print On-Demand Production

Inventory holding costs are a significant financial burden. Warehousing, depreciation, obsolescence risk, and capital immobilization directly affect cash flow.

Manufacturers increasingly seek to:

Reduce physical stock levels
Minimize obsolete inventory
Transition from forecast-based production to demand-driven models

Print 3D On Demand and rapid prototyping service enable digital warehousing strategies:

Additive manufacturing spare parts can be stored as CAD files instead of physical stock.
On-demand manufacturing triggered by real orders
Elimination of minimum order quantities
Reduced safety stock requirements

This model improves:

Working capital efficiency
Warehouse footprint reduction
Obsolescence risk mitigation
Product lifecycle extension.

For industrial sectors with long-tail spare part requirements, 3d print on demand is often economically superior to traditional batch production.

Strategic Implication for European Manufacturers

The adoption of Print 3D On Demand and rapid prototyping service is no longer purely technical—it is financial and strategic.

It supports:

Faster innovation cycles
Operational resilience
Agile production models
Customization scalability
Lean inventory strategies

Companies that integrate 3d printing production into their product development and supply chain architecture gain structural flexibility. In volatile markets, flexibility is a competitive asset.

The transition from prototyping tool to integrated custom additive manufacturing production enabler is already underway. Manufacturers that act early position themselves for lower risk, higher responsiveness, and stronger margin control.

Prototek: Industrial 3D Printing Services in Italy

For companies seeking an experienced partner in Europe, Prototek provides industrial Print 3D On Demand and rapid prototyping services from its facility in Valenza (AL), Piedmont, Italy.

Prototek supports:

Engineering consultation
Material selection guidance
Functional testing prototypes
Low-volume production
Rapid turnaround across Europe

Technologies Available

Carbon DLS™
HP Multi Jet Fusion
Engineering-grade polymers, like Thermoplastics, Epoxy and Elastomeric resins.

The advantage is not only technological expertise, but application engineering know-how and production capacity. Many companies approach additive manufacturing with a technical problem rather than a predefined solution. Prototek’s workflow focuses on identifying the most suitable material, process, and cost structure for each application.

Advantages of 3D Printing and Rapid Prototyping in Industrial Applications

Accelerated Iteration

One of the most decisive advantages of 3D print On Demand and rapid prototyping is the elimination of tooling dependency during development.

In traditional manufacturing, any geometry modification requires:

Tool redesign
Tool re-machining
Additional sampling
New validation cycles

Each iteration can add weeks and significant non-recurring engineering (NRE) costs.

With additive manufacturing, design changes occur at the CAD level and are implemented immediately in the next build cycle. This enables:

Parallel design validation
A/B comparison of multiple geometries
Rapid correction of tolerance issues
Immediate integration of field-test feedback

For engineering teams operating under compressed timelines, iteration speed directly correlates with innovation quality. Faster iteration allows more design refinement before product release, improving reliability and reducing post-launch failures.

Functional Testing

Modern additive manufacturing is no longer limited to visual prototypes. Engineering-grade polymers and elastomeric materials allow production of mechanically functional parts capable of real-world testing.

Functional validation can include:

Static and dynamic load testing
Fatigue resistance evaluation
Thermal cycling and heat exposure
Chemical resistance analysis
Snap-fit and assembly stress testing

Technologies such as Carbon DLS™ and HP Multi Jet Fusion produce parts with high dimensional stability and consistent mechanical properties. This allows prototypes to simulate final-use conditions with high accuracy.

As a result, companies can:

Identify structural weaknesses early
Validate material performance before tooling investment
Conduct pre-certification testing
Reduce risk of costly late-stage design changes

Functional testing at the prototyping phase significantly lowers product development risk.

Weight Reduction

Weight optimization is a critical requirement in automotive, robotics, aerospace, and industrial automation sectors.

Additive manufacturing enables design strategies that are not feasible with subtractive methods:

Topology-optimized geometries
Internal lattice structures
Hollow reinforced cores
Consolidation of multi-part assemblies

Topology optimization software removes unnecessary material while preserving structural integrity. Lattice infills allow internal reinforcement without adding bulk mass.

The impact includes:

Improved strength-to-weight ratios
Reduced energy consumption in moving systems
Lower material usage
Enhanced thermal dissipation

For industries focused on performance efficiency, weight reduction translates directly into operational savings and improved system dynamics.

Customization at Scale

Conventional manufacturing penalizes product variation. Every design change can require new tooling, separate production lines, or additional setup time.

Additive manufacturing removes this constraint.

With Print 3D On Demand and rapid prototyping, each part can be digitally modified without affecting production infrastructure. This enables:

Product variants without additional tooling
Application-specific modifications
Customer-driven personalization
Serial-number-based design adjustments

Mass customization becomes economically viable because production complexity does not increase proportionally with design variability.

This is particularly valuable for:

Industrial equipment with sector-specific adaptations
Ergonomic components
Specialized enclosures
Limited-edition or pilot series

Customization shifts from being a cost burden to a competitive differentiator.

Bridge Manufacturing

Between prototype validation and full-scale injection molding, companies often face a production gap. Tooling development can require several weeks or months.

During this period:

Market demand may already exist
Sales opportunities may be delayed
Competitors may gain advantage

Bridge manufacturing using additive technologies allows companies to produce low-to-medium volumes while molds are being finalized.

Benefits include:

Early revenue generation
Real-market performance feedback
Gradual demand validation
Reduced pressure to rush tooling decisions

Additionally, bridge production can reveal unforeseen design or assembly issues before committing to high-volume tooling, reducing financial risk.

For many industrial manufacturers, Print 3D On Demand and rapid prototyping are no longer isolated R&D tools but integral components of phased production strategy.

Strategic Perspective

Each of these advantages—accelerated iteration, functional validation, weight optimization, scalable customization, and bridge manufacturing—contributes to a broader transformation in industrial operations.

Additive manufacturing enables manufacturers to:

De-risk innovation
Compress development timelines
Improve product performance
Align production with real demand
Maintain capital efficiency

In high-competition industrial markets, these capabilities are not incremental improvements; they are structural advantages.

Transitioning from Prototype to 3d Printing Production

One common misconception is that 3D Print On Demand and rapid prototyping are limited to early-stage development. In reality, additive manufacturing has evolved into a scalable production solution capable of supporting the full product lifecycle—from single prototypes to thousands of end-use parts.

Today, industrial additive manufacturing supports:

Short-run production
Spare parts on demand
Industrial replacement components
Aftermarket solutions
Customized serial production

From One Part to Thousands — Without Re-Tooling

Unlike injection molding, additive manufacturing does not require tooling amortization to become economically viable. The same digital workflow can produce:

A single functional prototype
A pilot batch of 50 units
Hundreds of bridge production parts
Thousands of serial components

All without mold fabrication, tool modification, or production line reconfiguration.

This enables companies to scale production progressively, aligned with real market demand rather than forecast assumptions.

On-Demand and Customized Production

Modern markets increasingly require flexibility:

Variant-specific geometries
Customer-driven customization
Spare parts availability over long product lifecycles

With Print 3D On Demand and rapid prototyping, production becomes demand-driven rather than stock-driven.

Instead of holding large inventories, manufacturers can:

Store digital files instead of physical stock
Produce parts only when required
Eliminate minimum order quantities
Reduce obsolete inventory risk

This digital inventory model significantly reduces:

Warehousing costs
Working capital immobilization
Material waste from unsold units
Overproduction inefficiencies

Additive manufacturing builds only what is needed, when it is needed.

Eliminating Material Waste

Traditional subtractive processes remove material from a solid block, generating scrap. Injection molding requires runners, sprues, and surplus production to justify setup costs.

Additive manufacturing deposits material only where required. This results in:

Lower raw material waste
Reduced environmental impact
Higher material efficiency
Improved sustainability metrics

For companies under ESG and sustainability pressure, this contributes to measurable environmental performance improvements.

Scalable Industrial Capacity

Scalability depends not only on technology, but on infrastructure.

With a production fleet of seven Carbon systems and a dedicated HP Multi Jet Fusion laboratory operating 24 hours per day, five days per week, Prototek provides the manufacturing capacity necessary to support the transition from prototyping to scalable serial production.

This infrastructure enables:

Parallel production runs
Consistent mechanical repeatability
Controlled batch traceability
High throughput for industrial clients

The combination of Carbon DLS™ and HP MJF platforms ensures both high-performance material options and cost-efficient batch production.

Reducing Tooling Costs and Accelerating Time-to-Market

Injection mold development requires substantial upfront capital and long lead times. Design errors discovered after tooling fabrication can generate significant rework costs.

By integrating additive manufacturing into the production roadmap, companies can:

Delay or eliminate tooling investment
Validate real-market demand before mold fabrication
Shorten commercialization timelines
Enter the market earlier with bridge production

This phased approach reduces financial exposure while accelerating time-to-market.

To understand how industrial companies have successfully transitioned from prototyping to scalable production using rapid manufacturing, explore the success case studies of businesses that have chosen to rely on our 3D printing services.

Real-world applications demonstrate how additive manufacturing can reduce costs, accelerate development, and support sustainable, on-demand production strategies.

For many manufacturers, Print 3D On Demand and rapid prototyping are no longer a preliminary step before “traditional production.” They represent a mature, flexible, and scalable manufacturing model aligned with modern industrial demands.

How to Evaluate a 3D Printing Service as Partner

When selecting a provider, consider:

Material portfolio and certifications
Mechanical certification capabilities
Dimensional accuracy standards
Production scalability
Engineering support
Quality Control and Project Security.

A technical partner such as Prototek can reduce risk by aligning process parameters with final application requirements.

FAQs – 3D Printing and Rapid Prototyping

Q1. What is the difference between 3D printing and rapid prototyping?

3D printing refers to the additive manufacturing process itself, while rapid prototyping is the application of that technology to quickly create and test product concepts.

Q2: Is 3D printing suitable for functional mechanical parts?

Yes. With technologies like Carbon DLS and HP Multi Jet Fusion, parts can achieve high strength, thermal resistance, and durability.

Q3: When is additive manufacturing more cost-effective than injection molding?

Typically in low-volume production (from 1 to a few thousand units), where tooling costs would otherwise dominate.

Q4: Can 3D printing replace traditional manufacturing?

It complements rather than replaces traditional methods. It is especially effective for prototyping, customization, and short-run production.

Q5: How fast can industrial rapid prototyping be delivered in Europe?

Lead times vary, but many industrial services provide functional parts within a few days, depending on complexity and volume.

Conclusion

3D printing and rapid prototyping are no longer experimental technologies—they are operational and strategic tools for industrial competitiveness.

For European manufacturers seeking faster validation cycles, reduced risk, and scalable innovation, additive manufacturing represents a strategic investment.

With advanced platforms like Carbon DLS™ and HP Multi Jet Fusion and specialized service providers such as Prototek, companies can move from concept to functional production with speed, precision, and cost control.

Contact Prototek's Experts
to request a consultation or a quote for your next 3D printing project.

[contact-form-7]

L'articolo Custom 3D Printing On Demand & Rapid Prototyping Services proviene da Prototek.

Industrial 3D Printing Production Services & Manufacturing Company

francescoodierna@gmail.com — Mon, 02 Mar 2026 15:17:33 +0000

Scale your operations with a reliable 3D printing manufacturing company. At Prototek, we specialize in industrial 3D printing for manufacturing, transforming the way businesses produce components. Whether you need complex 3D printed industrial parts or are looking to shift towards mass production 3D printing, our end-to-end 3D printing manufacturing solutions guarantee industrial-grade repeatability, certified materials, and unmatched speed.

Industrial 3d Printing Manufacturing

Industrial 3D printing manufacturing in industry has shifted from prototyping support to a strategic production technology. Today, industrial additive manufacturing enables companies to eliminate molds, reduce tooling investments, accelerate time to market, and manufacture complex geometries that traditional methods cannot achieve.

For European manufacturers facing rising tooling costs, supply chain volatility, and demand for customization, industrial 3D printing provides a scalable and economically viable alternative.

Scalable Solutions for Mass Production 3D Printing

Prototek is a professional 3D manufacturing company headquartered in Valenza (AL), Italy, delivering 3D printing production services to industrial clients across Europe and worldwide. With over 20 years of hands-on expertise in the additive manufacturing market, we have become the trusted partner for engineering teams and procurement managers who need to scale beyond prototyping and transition into reliable, repeatable mass production 3D printing.

Our production facility operates 24/5 with an industrial fleet of Carbon DLS™ and HP MJF machines, enabling us to manage both small-batch runs and high-volume 3D printing production with consistent quality across every part.

As a 3D manufacturing company serving regulated industries, such as automotive, electronics, medical devices, and aerospace, we combine certified materials, traceable processes, and dedicated technical support to ensure every project meets the mechanical and dimensional standards your application demands.

Whether you need a one-off functional prototype or a fully scaled mass production 3D printing workflow integrated into your supply chain, Prototek has the infrastructure, expertise, and material portfolio to deliver on time and to specification.

3D Printing Production Service: from Rapid Prototyping to End-Use 3D Printed Industrial Parts

Historically, 3d printed industrial parts were limited to concept validation. Prototek adopt modern technologies such as HP Multi Jet Fusion (MJF) and Carbon DLS™ (Digital Light Synthesis™) , which have redefined what is possible in 3D printing manufacturing industry.

These systems produce functional, repeatable, high-performance polymer components suitable for:

Low-to-mid volume production
Functional end-use parts
Bridge manufacturing
Spare parts and on-demand production
Custom industrial components.

Unlike conventional injection molding, additive manufacturing does not require tooling. This eliminates upfront mold investment and drastically reduces project risk.

Eliminating Traditional Tooling

One of the primary drivers behind the adoption of industrial 3D printing is the elimination of molds and tooling.

In injection molding, tooling costs can range from €10,000 to €100,000+, with lead times of 6–12 weeks before the first part is produced. For small or medium production runs, tooling often makes projects economically unfeasible.

With 3D printing in manufacturing industry, production can begin immediately from a validated CAD file. The advantages include:

Zero mold costs
Shorter development cycles
Rapid design iterations
Reduced financial exposure

This is particularly valuable for startups, OEM suppliers, and companies launching new products in uncertain markets, as well as for scaling production in companies.

Geometries Impossible with Traditional Methods

Additive manufacturing enables complex internal channels, lattice structures, lightweight geometries, and consolidated assemblies.

Traditional molding and machining impose geometric constraints due to tool access, draft angles, and assembly limitations. By contrast, industrial additive manufacturing builds components layer by layer, allowing:

Topology-optimized structures
Internal cooling channels
Part consolidation (reducing multiple components into one)
Lightweight yet mechanically strong parts

For sectors such as automotive, industrial automation, footwear and sporting goods, this translates into performance gains and part count reduction.

HP Multi Jet Fusion: Production-Grade Polymer Manufacturing

HP Multi Jet Fusion (MJF) is widely recognized for its productivity and dimensional consistency.

It is ideal for:

Functional thermoplastic components (nylon PA12 and TPU)
Snap-fit assemblies
Housings and enclosures
Mechanical brackets
Custom tooling aids

MJF offers isotropic mechanical properties and repeatable surface quality, making it suitable for low-volume production 3D printing.

For manufacturers evaluating 3D printing vs injection molding, MJF becomes economically advantageous in small-to-medium batch sizes, particularly when product variations or frequent design updates are expected.

Carbon DLS™: Engineering-Grade Performance

Carbon DLS™ (Digital Light Synthesis™) enables high-resolution parts with exceptional surface finish and elastomeric or rigid materials.

Carbon’s programmable photopolymer resins allow production of:

Elastomeric seals and gaskets
Impact-resistant housings
Complex lattice cushioning systems
High-detail consumer-facing components.

The technology supports serial production with mechanical performance comparable to traditionally molded parts.

Prototypes That Behave Like Final Products

A major limitation of traditional prototyping is the gap between prototype material and final production material. With 3D printing in manufacturing industry, prototypes can be manufactured using the same materials and processes as end-use parts.

This ensures:

Accurate functional validation
Real mechanical performance testing
Faster certification processes
Reduced risk at production launch.

Manufacturers can move directly from validated prototype to scaled production without re-engineering for tooling.

Accelerating Time to Market

Speed is a competitive advantage. Additive manufacturing significantly accelerates product development cycles.

Compared to conventional manufacturing:

Lead times are reduced from weeks to days
Iterations can be implemented immediately
Bridge production fills the gap before tooling

For European manufacturers facing dynamic markets, this translates into earlier revenue generation and stronger competitive positioning.

High-Performance 3D Printed Industrial Parts

Cost Efficiency in Mass Production 3d Printing

One of the strongest economic advantages of 3D printing in manufacturing industry is its efficiency across variable production volumes — from 1 to thousands of parts, with the ability to scale according to demand.

Traditional manufacturing methods such as injection molding require high upfront tooling investments that are only justified at very large volumes. If demand fluctuates, or if product lifecycles are short, tooling amortization becomes a financial risk.

With industrial 3D printing, cost structure is fundamentally different:

No mold investment
No minimum order quantities
Production economically viable from a single unit to several thousand parts
Linear cost scaling without tooling break-even constraints

This makes additive manufacturing particularly suitable for:

Pilot production runs
Market validation batches
Customized product variants
Spare parts production
Bridge manufacturing before full-scale tooling

Scalability Without Re-Engineering

Technologies such as HP Multi Jet Fusion and Carbon DLS™ are designed for scalable additive manufacturing. Production capacity can increase simply by adjusting build volume utilization or adding parallel production systems, without redesigning the part for tooling.

This enables:

Gradual production ramp-up
Reduced inventory exposure
Demand-driven manufacturing
Faster response to market changes.

For European manufacturers operating in dynamic or niche markets, this scalability ensures operational flexibility while maintaining predictable cost structures.

In practical terms, 3D printing in manufacturing industry supports a seamless transition from prototype (1 unit) to small batch production (i.e. 100–500 parts) and further to serial production in the thousands (i.e. 1000-5000-10000); all without the financial and time burden of traditional tooling.

Why Choose Our 3D Manufacturing Company

Prototek: Industrial 3D Printing Services in Europe

For companies seeking an experienced manufacturing partner, Prototek (Valenza, Piedmont – Italy) provides advanced additive manufacturing services tailored to industrial applications.

Prototek integrates:

HP Multi Jet Fusion for production-grade polymer parts, with a continuous, high-capacity lab ensuring ongoing production
Carbon DLS™ technology for high-performance applications, with 7 Carbon printers operating 24/7, 5 days a week
Engineering support for design optimization
Small and medium batch production.

This combination enables clients to transition from prototype to serial production efficiently, without investing in internal equipment or specialized additive manufacturing expertise.

The ever-growing production capacity at Prototek ensures scalability for both low-volume prototypes and larger production runs, maintaining consistent quality and reducing lead times.

For manufacturers unfamiliar with HP MJF or Carbon DLS™ technologies, partnering with an additive service provider reduces technological risk, accelerates adoption, and allows immediate access to a fully operational industrial additive manufacturing ecosystem.

Industrial Adoption: Leading Companies Integrating 3D Printing Production

A growing number of sector leaders have chosen to integrate 3D printing in manufacturing industry into their industrial workflows by partnering with Prototek (Valenza, Italy). The objective is not experimentation, but measurable performance improvement across development, production, and supply chain efficiency.

Significant case studies span multiple industries:

These companies operate in highly demanding sectors where mechanical performance, durability, weight optimization, and time-to-market are critical competitive factors.

Measurable Industrial Results

By integrating industrial additive manufacturing technologies such as HP Multi Jet Fusion and Carbon DLS™ into their production ecosystems, these organizations achieved:

Accelerated time to market
Functional prototypes behaving like final products
Seamless transition from prototype to serial production
Scalable production volumes (from prototypes to full series)
Reduced tooling dependency
Optimized production costs
Shortened lead times
High mechanical performance and durability of parts.

➤ For example, in cycling and competitive sports applications, lightweight lattice structures and complex geometries improved product ergonomics and performance while maintaining structural integrity.

➤ In automation and machinery sectors, custom functional components were produced without waiting for mold fabrication, significantly reducing project timelines.

➤ In footwear and fashion, additive manufacturing enables achieving clear objectives in aesthetics, design, and performance, allowing manufacturers to deliver maximum customization tailored to individual products or clients.

➤ In medical and prosthetic applications, precision and repeatability were essential to ensure reliability and compliance.

The strategic integration of 3D printing in manufacturing industry allowed these companies to move beyond prototyping and embed additive manufacturing directly into production processes. Rather than replacing conventional manufacturing entirely, additive technologies complemented existing systems, enabling hybrid production models that are more agile and economically resilient.

For manufacturers evaluating industrial 3D printing adoption, these case studies demonstrate that additive manufacturing is not a theoretical innovation but a validated industrial solution delivering quantifiable operational advantages.

When to Choose 3D Printing in Manufacturing Industry

Additive manufacturing is particularly advantageous when:

Production volumes are below tooling break-even
Product customization is required
Complex geometries improve performance
Speed to market is critical
Supply chains require flexibility.

It is not a replacement for all traditional methods, but a complementary production technology that expands manufacturing capabilities.

Conclusion

3D printing in manufacturing industry is no longer limited to prototyping. With scalable technologies such as HP Multi Jet Fusion and Carbon DLS, manufacturers can produce functional, end-use components while eliminating tooling constraints, reducing lead times, and enabling advanced geometries.

For European companies seeking cost-efficient, flexible production strategies, industrial additive manufacturing represents a strategic advantage. By leveraging experienced partners like Prototek, manufacturers can adopt these technologies without capital investment and accelerate innovation with measurable ROI.

As manufacturing continues to digitize, additive manufacturing will play a central role in agile, decentralized, and on-demand production models.

Frequently Asked Questions (FAQs)

Q1: What is industrial 3D printing and how does it differ from traditional manufacturing?
Industrial 3D printing, also known as additive manufacturing, builds components layer by layer from digital models. Unlike injection molding or CNC machining, it eliminates molds and tooling, reduces lead times, and allows complex geometries impossible with traditional methods.

Q2: Can 3D printing produce functional end-use parts?
Yes. Technologies like HP Multi Jet Fusion and Carbon DLS™ enable the production of durable, functional parts suitable for low-to-mid volume manufacturing, prototypes that behave like final products, and even fully customized components.

Q3: What materials are available for industrial additive manufacturing?
Depending on the technology, materials range from engineering-grade thermoplastic polymers (PA12, TPU) to elastomeric and high-performance resins. These materials ensure mechanical strength, chemical resistance, and durability comparable to traditionally molded parts.

Q4: How scalable is 3D printing for manufacturing?
With Prototek’s 7 Carbon printers running 24/7 and a continuous HP Multi Jet Fusion lab, production is scalable from 1 prototype to thousands of parts, allowing manufacturers to ramp up volumes without investing in tooling or internal equipment.

Q5: What industries benefit most from 3D printing in manufacturing?
Additive manufacturing supports a wide range of industries (see Prototek’s case studies): cycling and sports equipment, automotive, medical and prosthetics, fashion and footwear, industrial automation, and art. Benefits include lightweight structures, design flexibility, faster time to market, and maximum customization.

Q6: How does 3D printing reduce time to market and lead times?
By eliminating mold fabrication and enabling rapid iterations directly from CAD files, industrial 3D printing shortens development cycles. Small-to-medium batch production can start immediately, reducing lead times from weeks to days.

Q7: Can additive manufacturing help optimize production costs?
Yes. Without tooling costs and minimum order quantities, additive manufacturing allows cost-effective production for low-to-mid volumes, on-demand parts, and scalable batches, minimizing inventory and financial risk.

Q8: Why partner with Prototek for industrial 3D printing?
Prototek offers expertise in HP MJF and Carbon DLS™ technologies, engineering support, and a high-capacity production environment. Partnering reduces technological risk, accelerates adoption, and ensures consistent quality for prototypes and serial production.

Contact Prototek's Experts
to request a consultation or a quote for your next 3D printing project.

[contact-form-7]

L'articolo Industrial 3D Printing Production Services & Manufacturing Company proviene da Prototek.

Industrial Additive Manufacturing: Benefits, European Trends, and Real Cases

francescoodierna@gmail.com — Mon, 09 Feb 2026 09:42:05 +0000

Additive manufacturing is consolidating its strategic role in European industry, moving beyond the experimental phase to establish itself as a concrete production solution. From prototyping to the production of functional components, this technology enables companies to reduce time-to-market, optimize costs, and create complex products tailored to sectors such as automotive, aerospace, medical, and sports.

What Additive Manufacturing Means in Industrial Context

Additive manufacturing is a production process that adds material layer by layer, enabling the creation of complex geometries, lightweight internal structures, and customized components with high precision compared to traditional manufacturing.

In industrial settings, AM is used to accelerate prototyping, optimize design, reduce production times, and create final components with competitive mechanical performance.

European Market Trends 2025–2026

According to the latest data, the European Additive manufacturing market exceeded $4 billion in quarterly revenues in Q3 2025, consolidating steady growth with a projected CAGR of 18% through 2030.

Key points of current trends:

Growth of AM services: AM service bureaus are growing faster than hardware, with companies preferring to rely on external partners for production, post-processing, and technical support.
Adoption of advanced polymers and high-performance materials: strong increase in the use of resins and technical polymers for automotive, sports, medical, and fashion, thanks to technologies like Carbon DLS™ (elastomeric EPU and epoxy RPU, EPX resins) and HP MJF (nylon PA12, glass-beads PA12 thermoplastics and TPU). This enables lightweight, resistant, and customized components without yet resorting to metal AM.
Post-volatility stabilization: revenues are more regular compared to previous years, with an increase in concrete industrial applications and third-party services.

Main Benefits of Additive Manufacturing

1. Speed in Product Development

Additive manufacturing enables rapid transition from CAD design to physical component, reducing prototyping and final production times.

2. Design Freedom and Geometric Complexity

Additive production allows creating lightweight internal structures, complex channels, and geometries impossible with traditional methods.

3. Cost Reduction and Material Optimization

On-demand production and targeted material use reduce waste and tooling, making even small series production economically viable.

4. Advanced Customization

Custom parts and specific designs can be created without impacting time or costs.

5. Industrial Sustainability

Reduction of waste, transportation, excessive warehouse inventory, and stock supports ESG strategies and more responsible processes.

Industrial Technologies: Carbon DLS™ and HP Multi Jet Fusion

Carbon DLS™

Digital Light Synthesis™ (DLS™) technology combines excellent finishes and high mechanical strength, enabling production of complex, functional, and aesthetic components.

Prototek Case Studies:

Filippi: seat pads for competitive rowing boats, with optimization of comfort and impact absorption.
Selle Italia: padding and ergonomic components for lightweight, high-performance saddles.
Alexander Wang – Griphoria shoes: 3D-printed heeled shoes with Carbon EPU 46, combining innovative design, lightness, and strength, demonstrating the application of Carbon DLS™ also in fashion and luxury products.

HP Multi Jet Fusion (MJF)

HP MJF enables production of functional parts with high precision and strength.

Prototek Case Studies:

OMNIA Technologies: complex industrial components, reduction of time and costs.
IDM Automation: custom parts, from prototypes to scaling on-demand production.
Bonzano’s Art Group: aesthetic-functional elements with high structural quality and finishes.

The Strategic Role of Prototek as AM Service Provider

Prototek is an industrial 3D printing service that supports European companies in adopting additive manufacturing. We don’t just print components, but act as a technology partner, offering:

Technical and design consulting: specification analysis, material selection, and optimal technology choice (Carbon DLS™ or HP MJF).
Integrated production: printing, post-processing, quality control, and certification support.
Flexibility and scalability: on-demand production of prototypes, small series, or custom components without the need for internal investments.
Access to advanced technologies: companies benefit from skills and advanced machines without having to purchase them.

Relying on Prototek means reducing risks, accelerating development times, and accessing advanced industrial technologies, becoming a strategic partner in the company innovation process.

Prototek: How an Additive Manufacturing Partner Operates

Prototek represents a complete industrial AM service bureau, with a consultative and customer-oriented approach. Our offering is based on four operational pillars:

1. Technical Analysis and Design Consulting

Before starting production, Prototek assists the customer in analyzing performance requirements, workloads, tolerances, and regulatory requirements. This enables choosing the most suitable technology and material, from prototype to final part.

2. Selection and Use of the Most Appropriate Technologies

With Carbon DLS™ (Digital Light Synthesis™), Prototek can produce components with complex geometries and high finishes, suitable for high-performance and ergonomic parts.
With HP Multi Jet Fusion (MJF), resistant functional components ready for industrial use are created, with mechanical stability and dimensional precision.

3. Integrated Production Workflow

The additive manufacturing process offered includes advanced design, topology optimization, 3D printing, post-processing, dimensional verification, and quality control: everything managed in a single flow to ensure “ready-to-use” parts.

4. Certification and Compliance Support

For regulated sectors (such as aerospace or medical), Prototek supports process documentation, traceability, and material qualification, facilitating industrial adoption of additive manufacturing printed components.

Competitive Advantages in Relying on an AM Service Partner

Relying on a partner like Prototek in additive manufacturing provides concrete advantages:

Reduction of technological risk: specialized skills reduce errors in technology and material selection.
Cost and time optimization: on-demand production, elimination of traditional tooling, and rapid processing cycles.
Access to advanced technologies without high capex: companies can leverage advanced technological solutions without direct machinery investments.
Greater production flexibility: ability to manage both prototypes and small production series according to market needs.
Continuous innovation: specialized partners like Prototek constantly update skills, materials, and processes to maintain operational competitiveness.

FAQ - Frequently Asked Questions on Industrial Additive Manufacturing

1. What is the difference between additive manufacturing and traditional 3D printing?

While the terms are often used interchangeably, additive manufacturing in industrial context refers to production-grade technologies designed for creating functional end-use parts with certified materials and repeatable quality. Traditional 3D printing typically refers to desktop or hobbyist machines used primarily for prototyping. Industrial AM uses advanced technologies like Carbon DLS™ and HP Multi Jet Fusion with certified materials (PA12, TPU, EPU, RPU) that meet strict mechanical and regulatory requirements.

2. Is additive manufacturing cost-effective for production, not just prototyping?

Yes, especially for batches under 500-1,000 units. Additive manufacturing eliminates tooling costs (€8,000-€15,000 per mold), enables on-demand production without minimum order quantities, and allows design iterations at zero additional cost. For the OMNIA Technologies case, switching to AM reduced lead time from 42 to 7 days and saved €8,400 per design iteration. The break-even point depends on part complexity and volume, but AM offers flexibility and speed advantages even when unit costs are comparable to traditional methods.

3. Which industries benefit most from additive manufacturing?

Additive manufacturing delivers value across multiple sectors:

Automotive: under-hood components, customized interiors, lightweight structural parts
Aerospace: complex geometries, weight-optimized components, rapid spare parts
Medical: patient-specific devices, surgical instruments, anatomical models
Sports & Recreation: high-performance equipment (Olympic rowing seats, cycling saddles)
Fashion & Luxury: innovative footwear, accessories, customized products
Industrial Machinery: functional components, custom tooling, replacement parts
Electronics: housings, cooling systems, customized enclosures

Any industry requiring customization, complex geometries, rapid development, or small-to-medium production runs can benefit significantly.

4. What materials are available for industrial additive manufacturing?

Modern additive manufacturing offers production-grade materials with certified properties:

Thermoplastics (HP Multi Jet Fusion):

Nylon PA12: high strength, chemical resistance, operating temp -40°C to +80°C
Glass-filled PA12: enhanced stiffness and dimensional stability
TPU: flexible, impact-resistant, abrasion-resistant

Advanced Resins (Carbon DLS™):

EPU (Elastomeric Polyurethane): flexible, high rebound, Shore 70-95A
RPU (Rigid Polyurethane): high strength, heat resistance up to 150°C HDT
EPX (Epoxy): superior mechanical properties, thermal stability

All materials include technical datasheets, mechanical test reports, and batch certifications for quality assurance.

5. How long does it take from design to finished part?

With optimized additive manufacturing processes:

Single functional prototype: 4-5 days (including file optimization, printing, post-processing, QC)
Small batch (10-50 parts): 5-7 days
Production batch (100+ parts): 7-10 days

For comparison, traditional manufacturing requires 4-12 weeks just for tooling creation, plus additional production time. The OMNIA Technologies case demonstrated reduction from 42 days (traditional) to 7 days (AM) – an 83% time reduction.

Can additive manufacturing maintain consistent quality across production batches?

Yes. Industrial additive manufacturing with ISO 9001:2015 and ISO 27001 certified processes ensures:

Batch-to-batch material consistency with certified suppliers
Dimensional accuracy verified through CMM and optical scanning
Mechanical properties tested per international standards (tensile, impact, thermal)
Complete traceability documentation for each production run
Process parameters locked and monitored for repeatability

Technologies like HP MJF and Carbon DLS™ are specifically designed for production consistency, not just prototyping.

6. What’s the difference between Carbon DLS and HP Multi Jet Fusion?

Carbon DLS™ (Digital Light Synthesis):

Technology: UV light projection with continuous liquid interface production
Strengths: Excellent surface finish, complex geometries, elastomeric materials
Best for: High-performance parts, aesthetic components, flexible/soft parts, medical devices
Materials: EPU, RPU, EPX resins
Applications: Cycling saddles, rowing seats, luxury footwear, ergonomic components

HP Multi Jet Fusion:

Technology: Powder bed fusion with thermal inkjet array
Strengths: Fast production, robust parts, scalability, cost-effective for volume
Best for: Functional prototypes, industrial components, mechanical parts, large batches
Materials: PA12, glass-beads PA12, TPU
Applications: Industrial machinery, automotive components, tooling, fixtures

Prototek helps select the optimal technology based on your specific requirements for performance, aesthetics, volume, and budget.

7. Do I need to invest in additive manufacturing equipment, or can I outsource?

Most companies benefit more from partnering with an additive manufacturing service like Prototek rather than investing in equipment:

Outsourcing Advantages:

No capital expenditure (machines cost €150,000-€500,000+)
No need for specialized operators and training
Access to multiple technologies (Carbon DLS, HP MJF) without multiple investments
Scalability: from 1 prototype to 10,000+ parts without capacity constraints
Expert design optimization and material selection
Established quality control and certification processes
Reduced risk: test applications before committing to internal investment

When to consider in-house:

Extremely high volumes (50,000+ parts/year of same component)
Highly confidential/proprietary designs requiring absolute control
Daily production requirements with stable, predictable demand

For most applications, the service bureau model offers better ROI, flexibility, and access to expertise.

8. How sustainable is additive manufacturing compared to traditional manufacturing?

Additive manufacturing supports sustainability goals through:

Material Efficiency:

95% less waste vs. subtractive manufacturing (CNC, milling)
Only material needed for the part is used (plus minimal support structures)
Recyclable powder/resin in many systems

Inventory Optimization:

On-demand production eliminates excess inventory
Reduces obsolescence waste by 15-20% annually
Digital inventory: store files, not physical parts

Supply Chain Impact:

Localized production reduces transportation emissions
Fewer suppliers needed (no separate tooling manufacturers)
Consolidation of parts reduces assembly and logistics

Energy & Resources:

Lightweight designs reduce energy in end-use (e.g., aerospace, automotive)
Optimized geometries improve thermal efficiency
No chemical waste from traditional tooling processes

These factors support ESG (Environmental, Social, Governance) reporting and corporate sustainability commitments.

9. How do I get started with additive manufacturing for my company?

Starting with additive manufacturing through Prototek follows a clear pathway:

Step 1: Initial Assessment (Week 1)

Submit 2-3 CAD files of components you’re considering for AM
Free technical feasibility analysis
Technology and material recommendations
Cost and timeline estimates

Step 2: Pilot Project (Weeks 2-4)

Select 1 component for trial production
5-10 functional parts for testing
Design optimization for additive manufacturing
Performance validation in your application

Step 3: Production Scale-Up (Month 2+)

Transition to regular production batches
Establish quality protocols and specifications
Integration into your supply chain
Continuous improvement and design iteration

No upfront investment required – pay only for parts produced. Most companies see ROI within first 3-6 months through eliminated tooling costs and accelerated time-to-market.

Conclusions

In 2025–2026, additive manufacturing confirms its strategic importance in the European industrial landscape, with a growing market, increasingly central AM services, and applications that go beyond prototyping toward real industrial components.

Collaboration with an AM service bureau like Prototek enables companies to accelerate innovation, optimize costs and times, and access advanced technologies that improve performance, customization, and sustainability in production processes.

Contact Prototek's Experts

[contact-form-7]

L'articolo Industrial Additive Manufacturing: Benefits, European Trends, and Real Cases proviene da Prototek.

From Additive Manufacturing Rapid Prototyping to Serial Production

francescoodierna@gmail.com — Fri, 06 Feb 2026 07:38:51 +0000

Accelerate your product development with our end-to-end solutions. At Prototek, we bridge the gap between additive manufacturing rapid prototyping and full-scale additive manufacturing production. Validate your functional parts quickly, and seamlessly scale to industrial production using the same advanced technologies and certified materials.

How Additive Manufacturing Became Scalable Industrial Technology

Additive manufacturing production has undergone a radical transformation in recent years.

What was once considered exclusively a rapid prototyping technology now represents a mature production solution, capable of managing production batches from a few pieces to tens of thousands of finished components.

This paradigm shift didn’t happen by chance: the evolution of industrial additive manufacturing technologies, certified materials, and quality control processes has enabled the transition from experimental laboratory to structured production line.

The Journey from Prototyping to Serial Production

The Origins: 3D Printing as a Prototyping Tool

For over two decades, 3D printing was primarily used to accelerate the initial phases of product development. Engineers and designers could quickly visualize an idea, test a component’s ergonomics, or verify the assembly of complex parts without waiting weeks for the creation of expensive molds.

“For a long time, additive manufacturing was considered a support technology: a useful tool for rapid prototyping, to visualize an idea, to accelerate the initial phases of product development,”

explains Andrea Barchi, Director of the 3D Production Division at Prototek, an Italian company part of the Dedem S.p.a. Group that has been working with additive technologies since 2007.

This perception limited the technology’s use to the preliminary phases of product development, relegating additive manufacturing production to a marginal role compared to traditional production methods such as injection molding or CNC machining.

Additive Manufacturing Rapid Prototyping: Validate Your Projects

Additive manufacturing rapid prototyping is where every serious industrial project begins, and where the quality of your manufacturing partner becomes immediately apparent.

Before a component enters serial production, it must be validated: functionally, mechanically, and geometrically. The speed and fidelity of that validation process directly determines how quickly your product reaches market and how much engineering budget is consumed along the way.

At Prototek, additive manufacturing rapid prototyping is not a separate service from production, it is the first phase of a continuous workflow.

The same Carbon DLS™ and HP Multi Jet Fusion technologies, the same certified materials, and the same engineering team that manage your serial production runs also handle your rapid prototyping additive manufacturing phase.

This means that a prototype produced at Prototek is not an approximation of the final part. It is the final part, produced in smaller quantity, with identical mechanical properties, surface finish, and dimensional tolerances.

This continuity between additive manufacturing rapid prototyping and production eliminates one of the most costly inefficiencies in traditional product development: the technology gap. When prototyping is done on a desktop FDM machine and production moves to injection moulding, the prototype never truly represents the end component. With rapid prototyping additive manufacturing on Carbon DLS™ or HP MJF, what you validate is exactly what you produce, at any scale.

“Many of our clients come to us for additive manufacturing rapid prototyping and stay for production,” continues Andrea Barchi, Director of the 3D Production Division at Prototek. “Once they experience the speed of iteration and the material performance of Carbon DLS™, the decision to scale on the same platform becomes straightforward.”

The practical advantages of Prototek’s additive manufacturing rapid prototyping service include:

Functional prototypes in 4–5 days — from validated CAD file to finished part, including post-processing.
True material fidelity — prototypes produced in the same certified resins and thermoplastics used for serial production.
DfAM integration — our engineering team optimizes your geometry for additive manufacturing before the first prototype is printed, eliminating costly redesign cycles downstream.
Scalability without supplier change — move from 1 prototype to 10,000+ production parts within the same certified workflow and quality framework.

For engineering teams managing tight development timelines and procurement managers evaluating the true cost of time-to-market, additive manufacturing rapid prototyping at Prototek could be the beginning of a production partnership.

The Turning Point: Technologies Designed for Additive Manufacturing Production

The real change began when 3D printing technologies were designed from the outset not for prototyping, but for additive manufacturing production of finished components.

The adoption of platforms such as HP Multi Jet Fusion and Carbon DLS™ (Digital Light Synthesis™) marked this fundamental shift.

“Carbon DLS™ represents the turning point for us,” states Barchi.

“It’s a technology designed from the beginning for producing final parts. It offers speed, high surface quality, and materials with stable mechanical properties over time. This allowed us to definitively cross the boundary between prototype and product.”

Prototek, headquartered in Valenza in the heart of the Piedmont jewelry district, has experienced this evolution firsthand. Founded in 2007 with four people focused on the jewelry sector, the company has progressively expanded its scope toward technical sectors such as: automotive, aerospace, sporting goods, fashion & footwear, industrial machinery, and automation.

Scalable Additive Manufacturing Production Solutions

1. Certified Materials with Guaranteed Mechanical Properties

The availability of certified technical materials has been a crucial enabling factor for industrial additive manufacturing production. Nylon PA12, glass-filled PA12, TPU, rigid and elastomeric polyurethanes:

each material today comes with detailed technical data sheets, compliance certifications, and reproducible mechanical tests.

This allows the use of components made with additive manufacturing production in critical applications, where mechanical performance must be guaranteed over time and documentable for quality audits.

2. Production Capacity and Quality Consistency

Scalability requires production capacity. Prototek currently has 7 Carbon DLS™ machines and is among the world’s leading consumers of Carbon materials in Europe.

“Having this production capacity radically changes our positioning,” observes Barchi.

“We can manage regular batches, guarantee continuity, and respond to international requests. We’re no longer an experimental laboratory, but a structured production reality.”

Parallel production across multiple machines, combined with standardized post-processing and integrated quality control, allows maintaining consistent quality standards even at high volumes.

3. Design for Additive Manufacturing (DfAM)

The transition from prototyping to additive manufacturing production requires a specific design approach. “Many models arrive designed for traditional technologies like injection molding or CNC. We intervene to optimize them, adapting them to additive,” explains Barchi.

This engineering phase is fundamental: it allows exploiting the geometric advantages of additive manufacturing production (lattice structures, internal channels, multi-part consolidation) while reducing weight, improving performance, and optimizing costs.

Real-World Applications: Additive Engineering Solutions from Theory to Practice

Sports Sector: Cycling Saddles and Rowing Equipment

Prototek was among the first companies in Europe to use additive manufacturing production to create completely 3D-printed padding for cycling saddles for Selle Italia.

The lattice structure allows differentiating stiffness and comfort in specific zones, achieving performance impossible with traditional foams.

Similarly, the seat pads for rowers in Filippi boats – which won medals at the Paris 2024 Olympics – are series-produced with Carbon DLS™ technology, guaranteeing lightness, strength, and repeatability.

Industrial Machinery: Functional Components in Production

In the pharmaceutical machinery sector, as documented in the COMAS (OMNIA Technologies Group) case study, additive manufacturing production in Nylon PA12 with HP Multi Jet Fusion technology enabled the creation of critical components such as:

anti-rotation devices, dosing bellows, and supports for diagnostic machinery.

The result: additive manufactured parts, with lead time reduction from 42 to 7 days, elimination of tooling costs, and the ability to rapidly iterate the design without additional investments.

Fashion and Design: From Experimentation to Production

Prototek has created experimental footwear for Alexander Wang – The Griphoria Knittel Heels – and components for the fashion sector, demonstrating how scalable additive manufacturing production can also meet high aesthetic requirements, not just functional ones.

The Prototek Model: Engineering Consulting and Integrated Production

What distinguishes an online 3D printing service from an additive manufacturing production partner is the consultative approach. Prototek doesn’t just print CAD files, but work for implementing proper additive engineering solutions. Our technical teams intervene in the feasibility analysis phase, recommend the most appropriate technology and material, optimize the design for additive, and manage the entire process through final quality control.

“Our job isn’t just to print a file,” emphasizes Barchi. “The engineering phase is fundamental. It transforms any object into a component truly designed for 3D printing.”

This integrated approach includes:

Technical-economic feasibility analysis of the component
DfAM optimization of the CAD file
Selection of the most appropriate technology and material
Scalable additive manufacturing production (pre-series, small batches, up to large volumes)
Post-processing (finishing, coloring, surface treatments)
Dimensional quality control
Complete traceability documentation
ISO 9001 and ISO 27001 certifications

The Future of Additive Manufacturing Production: Multi-Material and Differentiated Properties

Looking ahead, the frontiers of additive manufacturing production are shifting toward multi-material and the ability to vary mechanical properties within the same component.

“We haven’t yet achieved total freedom of design and execution, but additive already allows working on internal structures and stiffness gradients that would be impossible with traditional technologies,” highlights Barchi.

This evolution, combined with the integration of artificial intelligence for topology optimization and increasingly high-performance materials, promises to further expand the application field of industrial additive manufacturing production.

Conclusion: A Mature Production Technology

The journey from rapid prototyping to scalable additive manufacturing production is now complete. 3D printing today is no longer a “support” technology, but a genuine production alternative for finished components, small series, and customized production.

As demonstrated by Prototek’s experience – which in nearly twenty years has transformed an artisanal activity for the jewelry district into an international industrial reality with production capacity of thousands of pieces per month – additive manufacturing has reached the maturity necessary to compete with traditional methods.

The question is no longer “whether” to use additive manufacturing production, but “for which components” it represents the most advantageous solution in terms of performance, costs, and time-to-market.

FAQ - Frequently Asked Questions on Additive Manufacturing Production

1. What is additive manufacturing production and how does it work?

Additive manufacturing production is a fabrication process that creates objects by adding material layer by layer, unlike subtractive methods (milling, turning) that remove material.

Modern technologies like HP Multi Jet Fusion and Carbon DLS™ enable producing finished components with certified mechanical properties, starting directly from 3D CAD files.

2. Is additive manufacturing production suitable only for prototypes or also for series production?

Modern additive manufacturing production is fully suitable for series production.

Technologies like HP Multi Jet Fusion and Carbon DLS™ are specifically designed to produce finished components in batches from 1 to over 10,000 parts, with certified mechanical properties and guaranteed repeatability.

3. What are the advantages of additive manufacturing production compared to traditional methods?

The main advantages include:

Elimination of tooling costs (molds, dies)
Elimination of excessive stock inventory
Ability to produce variable batches without economic penalties
Geometric freedom for complex structures impossible to create otherwise
Drastic reduction in development times (from weeks to days)
Mass customization without additional costs

4. What materials are available for industrial additive manufacturing production?

Certified materials include:

Thermoplastics such as Nylon PA12 (also glass-beads) and TPU for mechanical applications
Rigid polyurethanes (RPU) and epoxy resins (EPX) for high temperatures
Flexible polyurethanes (EPU) for gaskets and elastomeric components
High-performance resins for technical applications.

All materials come with certifications, technical data sheets, and mechanical tests.

5. How much does additive manufacturing production cost compared to injection molding?

For batches under 500-1,000 units, additive manufacturing production is generally more economical due to the absence of tooling costs (e.g., €8,000-€15,000 per mold). For very high volumes (tens of thousands), injection molding may be more cost-effective. The break-even point depends on the specific component, but additive manufacturing production offers flexibility and reduced time-to-market even when the unit cost is slightly higher. Generally, the cost per individual part or batch with 3D printing varies based on geometries and volumes, as well as material and printing times.

6. Which industrial sectors use additive manufacturing production?

Main sectors include: automotive (under-hood components, customized interiors), aerospace (lightweight parts, complex geometries), medical (patient-specific devices, surgical instruments), industrial machinery (functional components, equipment), marine (customized components), sporting goods (high-performance components), electronics (housings, supports, cooling), footwear, fashion, and design (high-performance and aesthetic customized components).

In reality, the application possibilities are potentially infinite. While it’s true that not everything can be made through 3D printing, at Prototek we continuously work to identify new uses and develop its potential.

7. How long does additive manufacturing production take from CAD to finished part?

With an optimized process, typical timelines are: single prototype 4-5 days, 100-piece production batch 7-10 days. This includes file optimization, printing, post-processing, and quality control. By comparison, traditional methods require 4-12 weeks for tooling creation alone.

8. Is the quality of components from additive manufacturing production reliable over time?

Yes, modern materials offer dimensional stability and consistent mechanical properties over time. Each production batch is certified with mechanical tests (tensile, impact, thermal) and complete traceability documentation. ISO 9001 and ISO 27001 certified processes guarantee repeatability and compliance with industrial standards.

9. Is it possible to modify the design in additive manufacturing production without additional costs?

One of the greatest advantages of additive manufacturing production is that design modifications require only updating the CAD file, without new tooling costs. This enables rapid iterations, continuous improvements, and customizations without additional investments, making mass customization possible.

Want to explore how additive manufacturing production can optimize your manufacturing? Request a free feasibility analysis for your components and discover the advantages in terms of costs, timelines, and performance.

Contact Prototek's Experts

[contact-form-7]

L'articolo From Additive Manufacturing Rapid Prototyping to Serial Production proviene da Prototek.

Prototek

High-Temperature Carbon DLS Epoxy Resins: A Comprehensive Comparison of EPX 82, 86FR & 150

What Are Carbon DLS™ Epoxy Resins?

Carbon DLS™ Epoxy Resins: Technical Data Comparison

EPX 82: High Mechanical Performance for Automotive and Industrial Parts

Key Mechanical Properties of EPX 82

Chemical Resistance and Environmental Endurance

EPX 86FR: Flame-Retardant Carbon DLS™ Resin for Aerospace

UL 94 V-0 and FAR 25.853(a) Fire Certifications

High-Temperature Stability and Mechanical Data

EPX 150: Extreme Temperature Resistance and Biocompatibility

Thermal Endurance and Autoclave Sterilization

Medical and Industrial Applications for EPX 150

How to Choose the Right Carbon DLS™ Epoxy Resin?

Additive Manufacturing vs. Injection Molding for Epoxy Components

Start Your Production with Prototek's Carbon DLS™ Service

Request a technical consultation

Send your Inquiry to Our Experts

HP Multi Jet Fusion for Industrial 3D Printing: The Complete Technical Guide

What is HP Multi Jet Fusion and How Does It Work?

What Are the Main Differences Between MJF, SLS, and FDM?

What Materials Can MJF Use?

How Does MJF Affect Part Isotropy Compared to SLS?

What Industries Use MJF Technology?

What Are the Limitations of MJF for Industrial Use?

Is HP Multi Jet Fusion More Accurate Than SLS?

What Is the Surface Finish of MJF Parts?

Available Post-Processing Options

When Is MJF the Best Choice for Manufacturing?

Is MJF Cheaper Than SLS for Large Batches?

What Are the Lead Times for MJF vs SLS Production?

Are MJF Parts Durable for End-Use Applications?

What Certifications Are Available for MJF Parts?

What Are the Environmental Considerations for MJF?

Common Failures With MJF Parts and How to Avoid Them

"Where Can I Find MJF Service Providers? How to Choose?"

Ready to Test HP Multi Jet Fusion for Your Next Project?

Request a consultation with Our Experts

Industrial Additive Manufacturing & 3D Printing Production

Additive manufacturing production as a driver of manufacturing: from DfAM to series

What is DfAM and why does it determine the success of additive manufacturing production?

How additive manufacturing production eliminates spare part inventory costs

Carbon DLS™: the technology for functional additive manufacturing production

Which Carbon DLS™ materials does Prototek work with?

Industrial Additive Manufacturing: from Functional Prototypes to Certified Serial Production

3D Printing Manufacturing: Replacing Traditional Processes Without Replacing Your Supply Chain

Additive 3D Manufacturing as a Production Strategy: Beyond Prototyping

3D Printing On Demand Manufacturing: Eliminate Inventory, Produce What You Need, When You Need It

Carbon Design Engine: the DfAM software behind scalable production

The measurable advantages of DfAM in serial production

HP Multi Jet Fusion and PA 12: additive manufacturing production at industrial scale

From prototype to certified series: the strategic value of a digital production workflow

Additive manufacturing production: FAQs from R&D and engineering teams

Why partner with Prototek for additive manufacturing production in Europe

Conclusion: additive manufacturing production is ready for European industry

Contact Prototek's Experts to request a consultation or a quote for your next 3D printing project.

Additive Manufacturing Automotive: From Prototyping to Scalable Production

Why Additive Manufacturing Has Become Strategic in Automotive?

What Gets Produced with Additive Manufacturing in Automotive?

Materials for Additive Manufacturing Automotive: Verified Technical Data

Case Study: BMW Group Additive Manufacturing Automotive as an Industrial Standard

Case Study: Confederate Motors (now Combat Motors)

How Prototek Works with Automotive Companies

Frequently Asked Questions

1. Which materials are certified for automotive use?

2. Can additive manufacturing replace injection moulding in automotive?

3. How is dimensional repeatability guaranteed across batches?

4. How long from CAD file to physical part?

5. How does Prototek handle project confidentiality?

6. Does Prototek ship to other European countries?

Start with a Pilot Project in Additive Manufacturing Automotive

Contact Prototek's Experts to request a consultation or a quote for your next 3D printing project.

3D Printing vs Injection Moulding: When Does AM Become Cost-Effective?

3D Printing vs Injection Moulding | The Core Economic Difference: Fixed vs. Variable Costs

Make-or-Buy Decision Tool

3D Printing or Injection Moulding?

Real-World Cost Benchmarks

HP Multi Jet Fusion — PA12

Carbon DLS — EPU / CE

Injection Moulding — PA / PP

Contact Prototek's Experts
to request a consultation or a quote for your next 3D printing project.

Case Study: BMW Group
Additive Manufacturing Automotive as an Industrial Standard

Contact Prototek's Experts
to request a consultation or a quote for your next 3D printing project.

Contact Prototek's Experts
to request a consultation or a quote for your next 3D printing project.

Contact Prototek's Experts
to request a consultation or a quote for your next 3D printing project.
