HP MJF (Multi Jet Fusion) 3D Printing
HP MJF
(Multi Jet Fusion)
Advanced Additive Manufacturing with HP MJF
HP MJF (Multi Jet Fusion) 3D Printing is an advanced additive manufacturing technology that produces high-quality, durable, and functional parts. By leveraging a revolutionary fusion process, this technology ensures exceptional precision, speed, and consistency for both prototyping and series production.

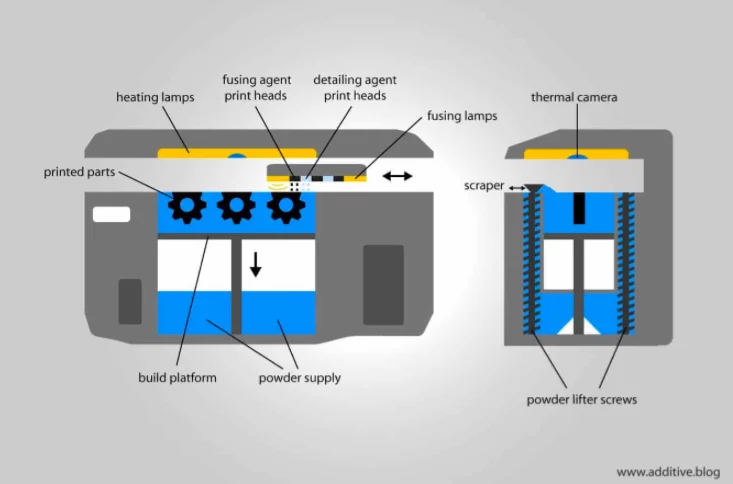

The process selectively fuses nylon PA12 powder using ultra-precise print heads that deposit a fusion agent, combined with energy lamps that generate the heat required to solidify the material. This method delivers superior detail resolution, minimal post-processing, and faster build times, making it ideal for industrial-scale production.

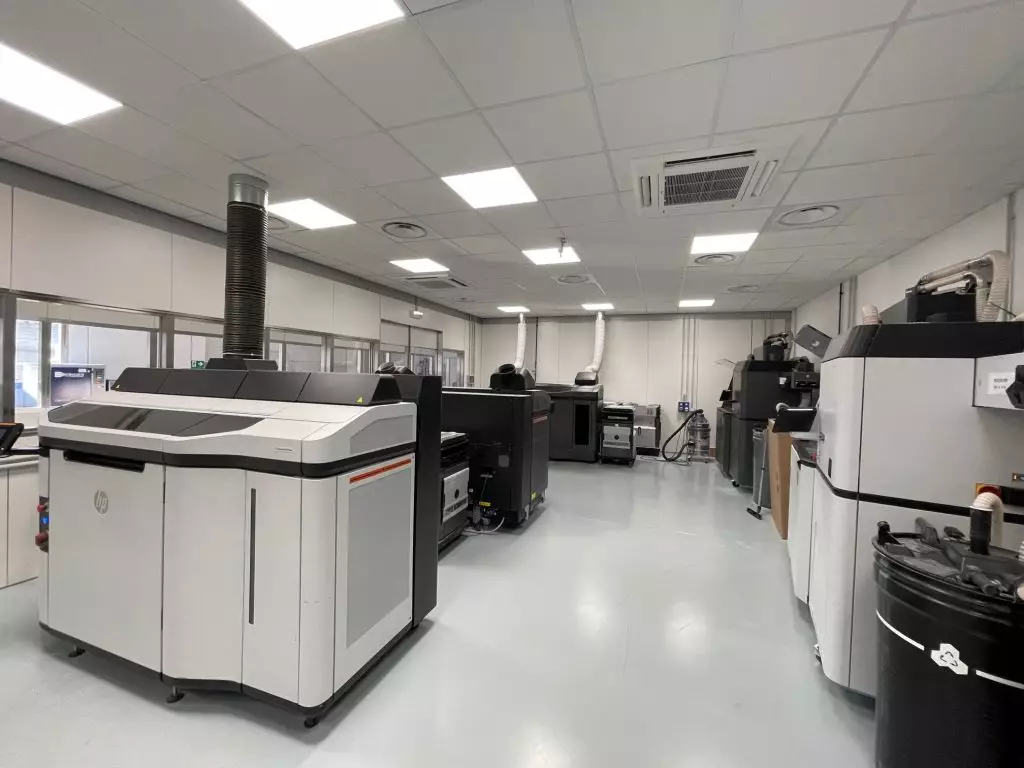

At Prototek, we operate four 4210/5210 Multi Jet Fusion units, enabling efficient production of both small prototype runs and full-scale series components.
Advantages of HP MJF 3D Printing
HP’s MJF (Multi Jet Fusion) technology represents a breakthrough in additive manufacturing, offering:
High printing speed: up to 340 voxels per second, significantly faster than competing 3D printing technologies.
Open software architecture: allows seamless integration and flexible workflow.
Exceptional efficiency: prints up to 10 times faster than traditional methods.
Waste reduction: up to 80% less material waste, making it sustainable and cost-effective.
Using fine-grain PA12 material, HP MJF produces ultra-thin layers of just 80 microns, resulting in smooth, uniform surfaces and highly detailed geometries.
The process reduces the need for post-processing and ensures mechanical performance comparable to injection-molded parts, even for complex designs.
Key Features of HP MJF 3D Printing
Material: PA12 (Nylon 12)
High detail and dimensional accuracy: the Multi Jet Fusion process produces precisely defined components, ideal for industrial and engineering applications.
Robustness and durability: PA12 is a high-performance thermoplastic, resistant to wear and suitable for long-lasting, functional parts.

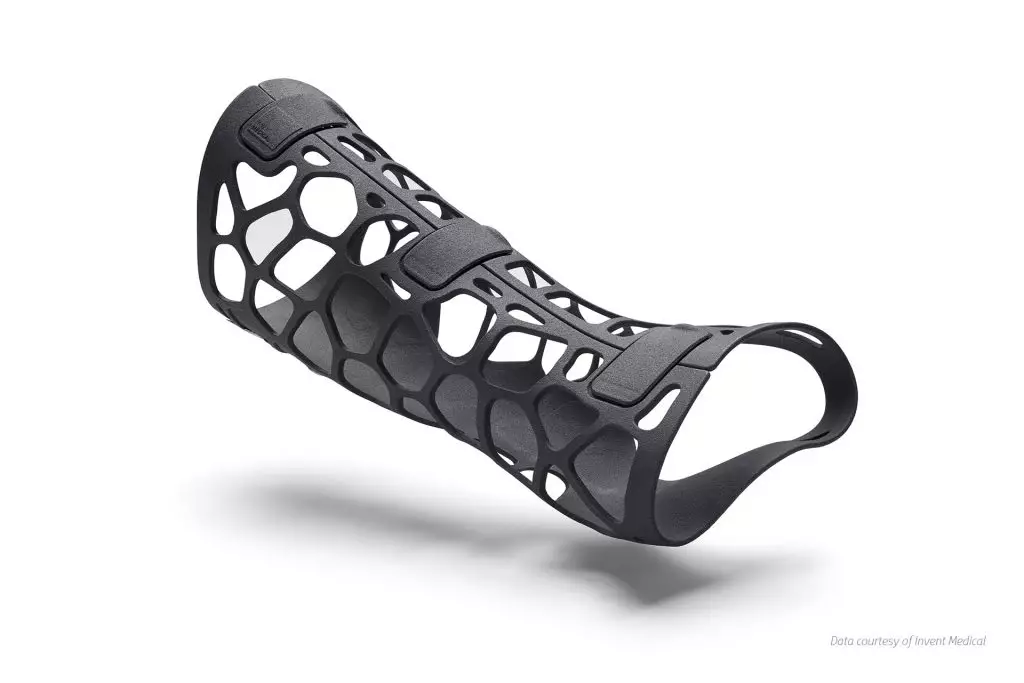

Customizable components: HP MJF enables the production of intricate assemblies, housings, casings, and connectors, even under high mechanical stress, personalizing each part according to the need.
Balanced properties and chemical resistance: PA12 parts exhibit high density, consistent mechanical characteristics, and resistance to oils, greases, and hydrocarbons, making them suitable for harsh environments.
Applications of HP MJF 3D Printing
HP MJF 3D Printing is versatile, supporting a wide range of industrial and commercial applications:
Low-volume production: economical small-batch manufacturing of end-use parts.
Prototypes: functional and form-testing prototypes with mechanical properties comparable to injection-molded parts.
Small components series: cost-effective alternative to traditional injection molding, suitable for connectors, housings, and mechanical assemblies.
HP Multi Jet Fusion
HP Multi Jet Fusion: Industrial Thermoplastic Production at Scale
HP Multi Jet Fusion 3d printing has established itself as the benchmark additive manufacturing technology for industrial thermoplastic production. Unlike powder bed fusion technologies that rely on a single laser to selectively sinter material point by point, HP Multi Jet Fusion deploys an array of thousands of print head nozzles across the entire build width simultaneously, depositing fusing and detailing agents at up to 340 voxels per second.
The result is a production speed, surface consistency, and mechanical isotropy that no competing thermoplastic additive manufacturing process currently matches at equivalent volume.
For engineering and procurement teams evaluating HP Multi Jet Fusion as a production alternative to injection moulding, the economic argument is clearest in the 50–10,000+ unit range: no tooling investment, no minimum order commitment, no geometric constraints on part complexity, and lead times measured in days rather than the weeks required for mould fabrication and validation.

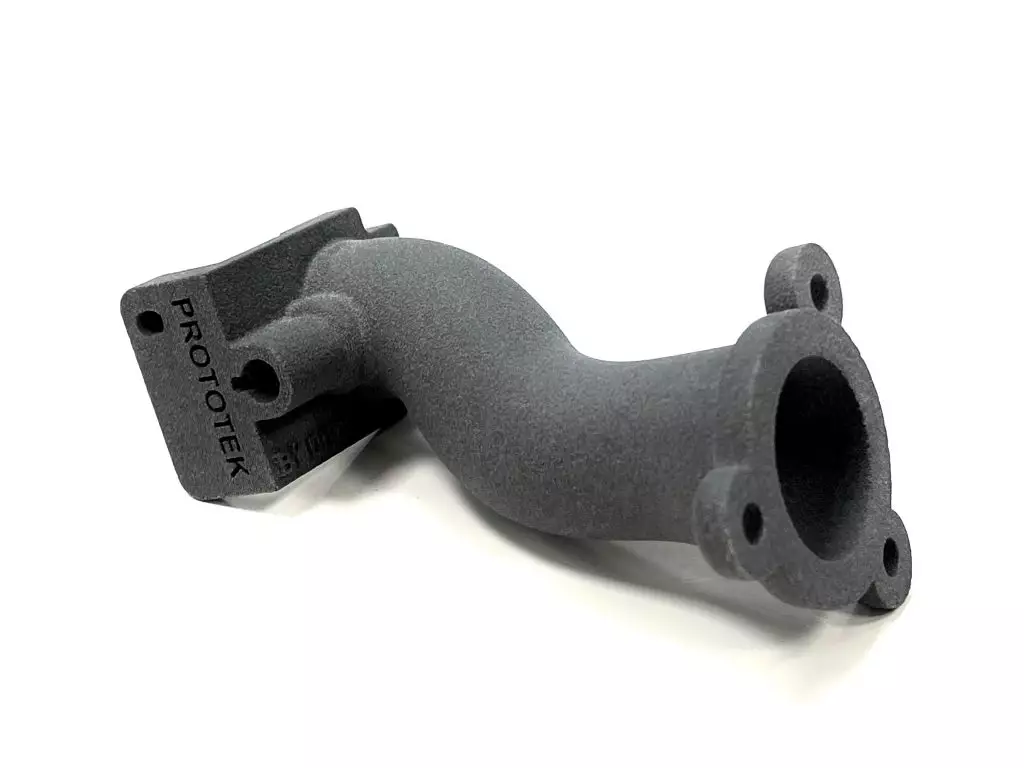

HP Multi Jet Fusion 3d printed parts in PA12 deliver mechanical performance: tensile strength, elongation at break, chemical resistance, comparable to injection-moulded nylon, making them viable for structural components, functional assemblies, and end-use parts in regulated industrial environments.
Prototek operates four HP 4210/5210 Multi Jet Fusion units, supported by a standardised post-processing workflow covering micro bead blasting, impregnation colouring, graphite treatment, and professional painting.
Every HP Multi Jet Fusion production batch is managed under ISO 9001-certified quality procedures, with full dimensional traceability from file to finished part.
MJF 3D Printing Service
Prototek MJF 3D Printing Service: Fast Turnaround, Production-Grade PA12 Parts
Prototek’s MJF 3D printing service is designed for industrial clients who need functional thermoplastic components delivered quickly, consistently, and at production quality, without the tooling investment and lead time of injection moulding.
Our MJF 3D print service leverages four HP Multi Jet Fusion units running on defined production schedules, giving European manufacturing companies reliable access to one of the most capable thermoplastic additive manufacturing platforms available today.
Every MJF 3D printing service order at Prototek follows a structured workflow: file review and DfAM optimisation where required, material and parameter selection based on your functional requirements, machine-level process control during the build, and post-processing, including bead blasting, colouring, or surface treatment, completed internally before dispatch.
This end-to-end management means your MJF 3D printed parts arrive ready for functional use or direct integration into your assembly, without requiring secondary operations on your side.
Our MJF 3D printing service covers applications from single functional prototypes — delivered in 4–5 days — to production batches of hundreds or thousands of PA12 components, with consistent mechanical properties and dimensional accuracy across every unit in the batch.
For companies managing ongoing production requirements, Prototek’s MJF 3D printing service can be structured as a framework supply agreement with defined lead times, pricing, and quality documentation for repeat orders.
Surface Finishing Services by Prototek
To enhance aesthetic quality, Prototek offers a variety of post-processing and finishing options tailored to customer needs.

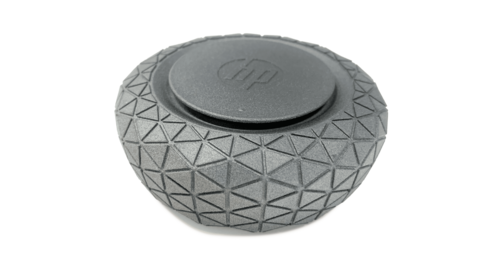

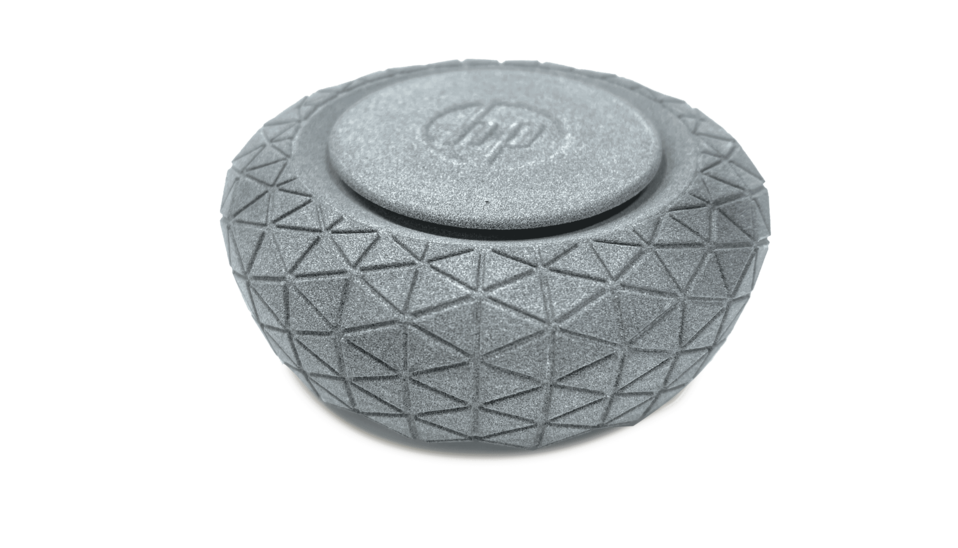

Micro bead blasting
In addition to the standard treatment, it reduces surface porosity and improves smoothness using a slightly abrasive process.

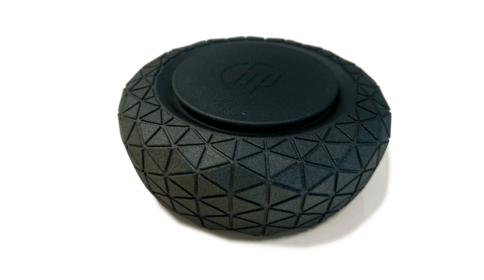

Impregnation coloring
Uniform black coloring achieved by penetrating the first layers of the part, ensuring stable, long-lasting coloration.
Shiny Black treatment
Combines black impregnation with micro-bead blasting to reduce surface roughness and opacity, resulting in a glossy, scratch-resistant, embossed-like finish.
Trattamento Shiny Black

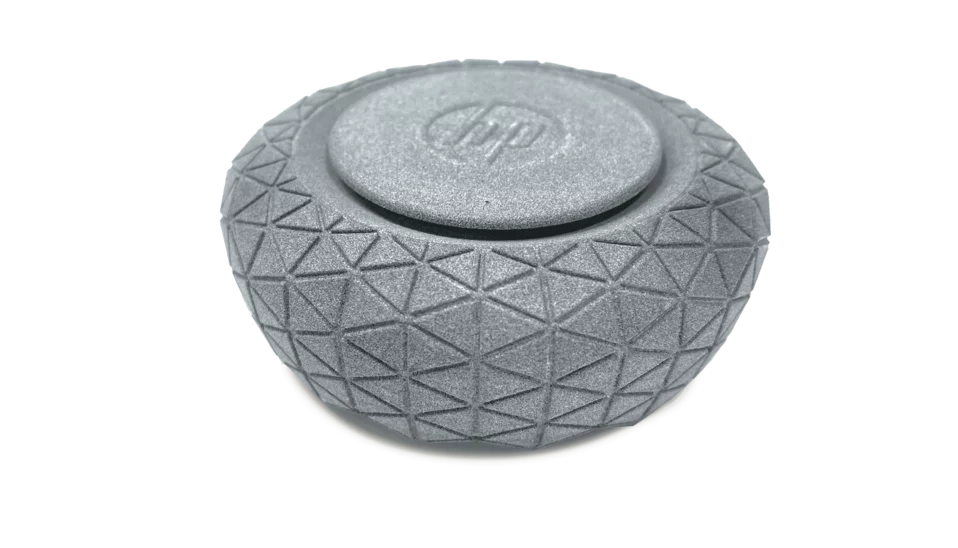

Graphite treatment
Creates a smooth, anti-scratch, metallic grey surface, one of the highest-quality finishes available.

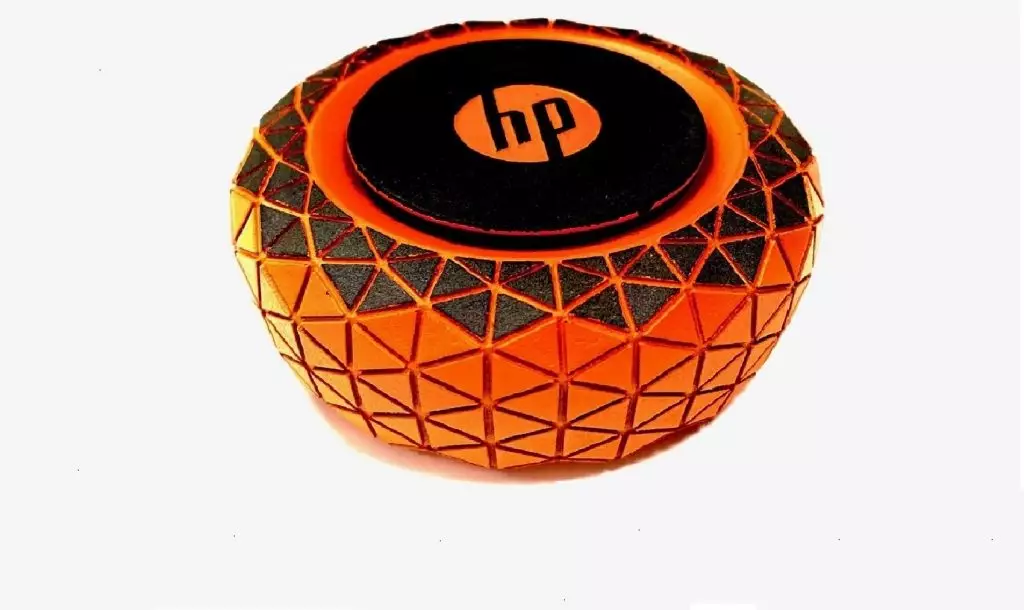

Painting and coatings
Optional professional painting, including surface preparation, to achieve a perfect aesthetic appearance for end-use products.
These services allow clients to obtain parts that are both functional and visually appealing, meeting industrial standards and design specifications.
Why Choose Prototek for HP MJF 3D Printing
Partnering with Prototek means accessing industrial-grade HP MJF 3D printing services, combining:
Precision and high detail
Fast turnaround and scalable production
Superior mechanical performance and surface quality
Customization for functional or aesthetic requirements
Our team evaluates every project to recommend the most suitable materials and finishing processes, ensuring efficient production, reduced lead times, and optimal cost-effectiveness.
Whether for prototypes or full-scale series production, Prototek delivers reliable, high-performance 3D printed parts suitable for mechanical, electronic, consumer, and industrial applications.
Conclusion
HP MJF (Multi Jet Fusion) 3D Printing at Prototek is more than a prototyping tool — it is a complete industrial solution for rapid, precise, and scalable additive manufacturing.
From functional prototypes to series production of complex, high-performance parts, our technology ensures:
Consistent dimensional accuracy
Outstanding mechanical and chemical resistance
Reduced material waste and production costs
Flexible post-processing and finishing options
Discover how HP MJF 3D Printing can enhance your product development, optimize production, and bring your innovative designs to market faster.
Request a consultation with Our Experts
